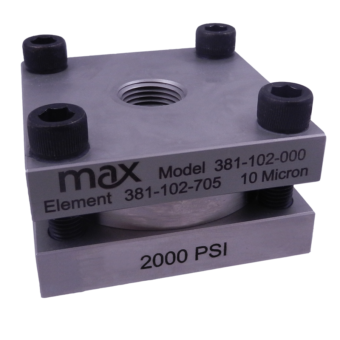

381 Filters and Filter Elements
| Element | Stainless Steel woven mesh |
| Size(s) | 5, 10, and 30 Micron |
| Pressure | 2000 psi (135 bar) |
| Port Size | 3/8” NPT standard or #4 SAE |
| Weight | 0.8kg (1.76 lbs) |
Materials of Construction
Body | Stainless steel, type 303 |
Element | Stainless steel, type 304 |
O-Rings | Standard: Viton® Optional: Teflon®, Perfluoroelastomer, Neoprene |
Variants
381 | 102 | 000 | Basic Filter | ||
Options | |||||
1xx | Std. Body (2000 psi) | ||||
x0x | 3/8” NPT ports | ||||
x9x | #4 SAE ports (7/16 – 30) | ||||
xx2 | 10 Micron element | ||||
xx3 | 5 Micron element | ||||
xx4 | 30 Micron element | ||||
000 | Viton® O-Rings | ||||
710 | Neoprene O-Rings | ||||
720 | Teflon® O-Rings | ||||
760 | Perfluoroelastomer O-Rings | ||||
Replacement Filters
381-102-705 | 10 Micron replacement element with Viton® seals |
381-102-715 | 10 Micron replacement element with Neoprene seals |
381-102-725 | 10 Micron replacement element with Teflon® seals |
381-103-705 | 5 Micron replacement element with Viton® seals |
381-103-725 | 5 Micron replacement element with Teflon® seals |
381-104-705 | 30 Micron replacement element with Viton® seals |
381-104-725 | 30 Micron replacement element with Teflon® seals |
