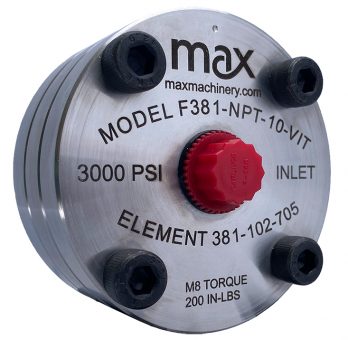

F381 Filters and Filter Elements
| Element | Stainless Steel woven mesh |
| Size(s) | 5, 10, and 30 Micron |
| Pressure | 3000 psi (207 bar) |
| Port Size | 3/8” NPT, #6 SAE, 3/8 BSPP* |
| Weight | 1.34 kg (2.95 lbs) *Consult Factory for Availability |
Materials of Construction
Body | Stainless steel, type 303 |
Element | Stainless steel, type 304 |
O-Rings | Standard: Viton® Optional: Teflon®, Perfluoroelastomer, Neoprene |
Variants
F381 | xxx | xxx | xxx | Std. Body (3000 psi) | |
Options | |||||
NPT | 3/8” NPT ports | ||||
SAE | #6 SAE ports | ||||
BSP* | 3/8 BSPP ports* | ||||
5 | 5 Micron element | ||||
10 | 10 Micron element | ||||
30 | 30 Micron element | ||||
VIT | Viton® O-Rings | ||||
TEF | Teflon® O-Rings | ||||
PER | Perfluoroelastomer O-Rings | ||||
NEO | Neoprene O-Rings | ||||
* Consult Factory for Availability | |||||
Replacement Filter Element Kits
381-102-705 | 10 Micron replacement element with Viton® seals |
381-102-715 | 10 Micron replacement element with Neoprene seals |
381-102-725 | 10 Micron replacement element with Teflon® seals |
381-103-705 | 5 Micron replacement element with Viton® seals |
381-103-725 | 5 Micron replacement element with Teflon® seals |
381-104-705 | 30 Micron replacement element with Viton® seals |
381-104-725 | 30 Micron replacement element with Teflon® seals |
