Technical Specifications
Flow
1 cc/min to 2 liters/min
Port Size
1/8″ NPT or 1/8″ – 28 BSPP
Accuracy
Accuracy (30 cP calibration) ±1.0% of reading over a 100:1 range
Accuracy (3 cP calibration) ±1.0% of reading over a 100:1 range (≤100 psi*)
Accuracy (3 cP calibration) ±1.0% of reading over a 100:1 range (≤100 psi*)
Pressure
250 psi (17 bar)
K-Factor
500 pulses/cc
Wetted Materials
Unfilled PEEK, Zirconia (ZrO₂)
Typical Fluids pH Range
2 to 13
Features
- • Operating temperature from -15°C to 70°C
- • IP65-rated enclosure
- • Frequency and analog outputs
-
•
Compatible with a wide range of harsh fluids including*:
- • Acids and bases
- • Agricultural chemicals
- • Sanitization agents
- • Industrial chemicals and reagents
- * Refer to chemical compatibility charts for a full list of fluids

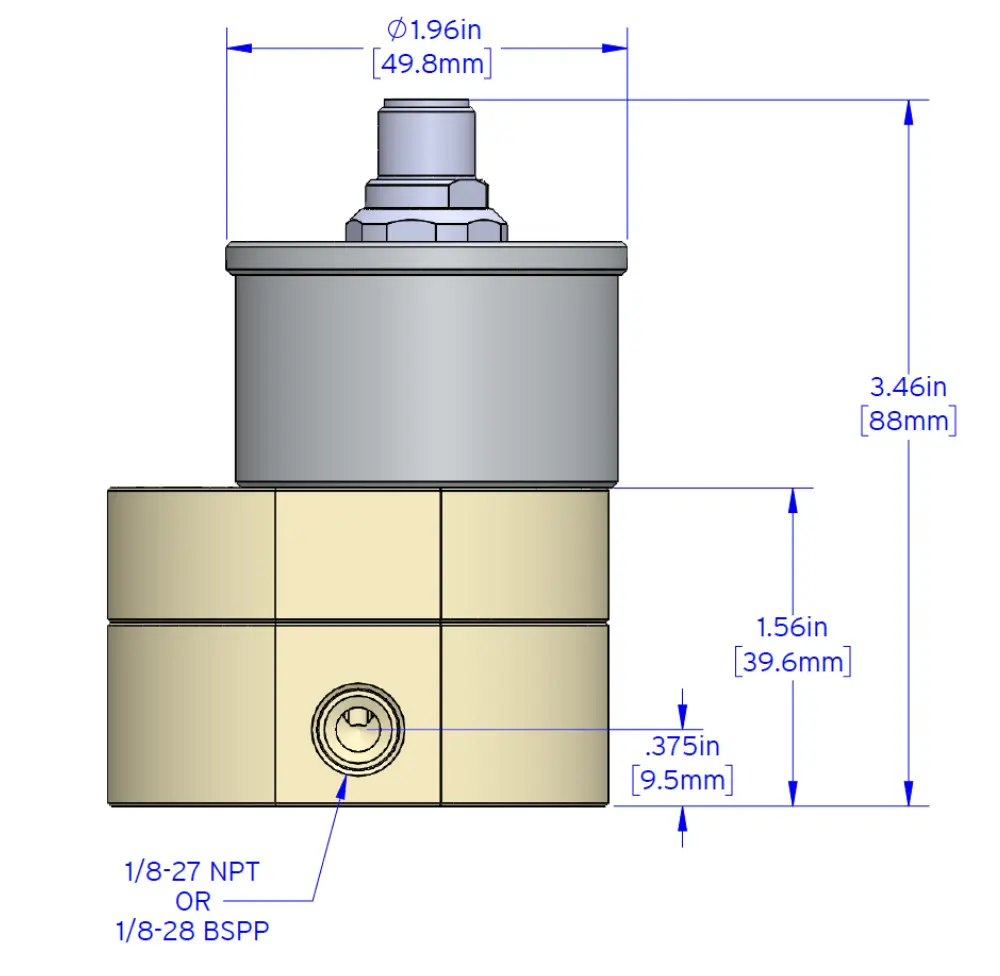

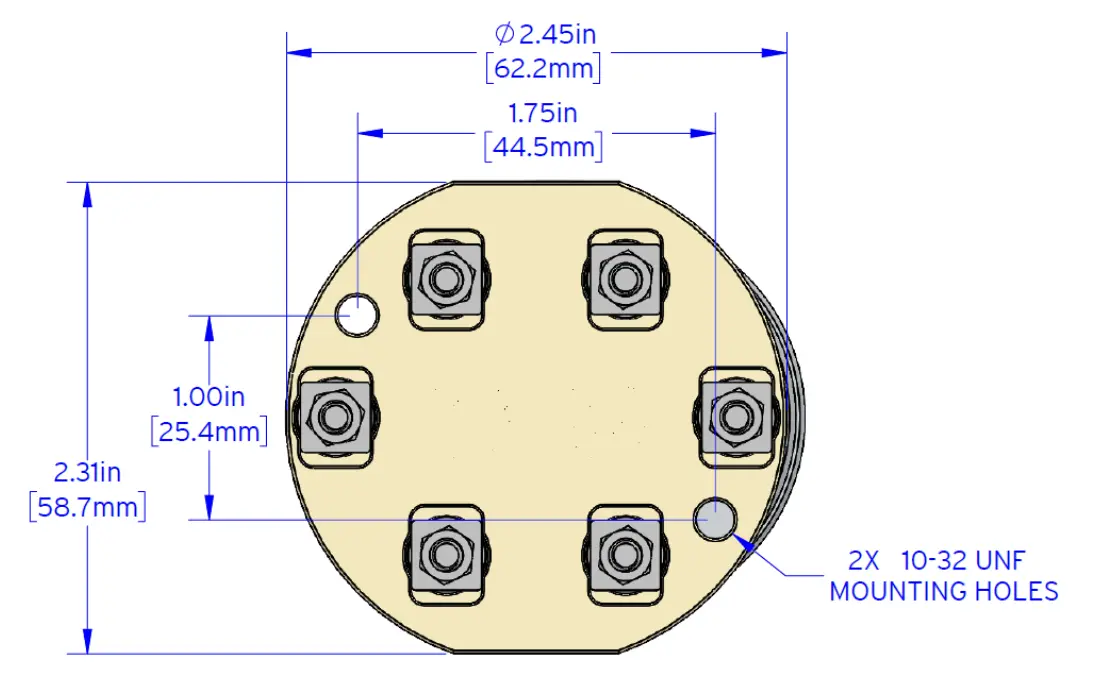

Dimensions
Request Quote

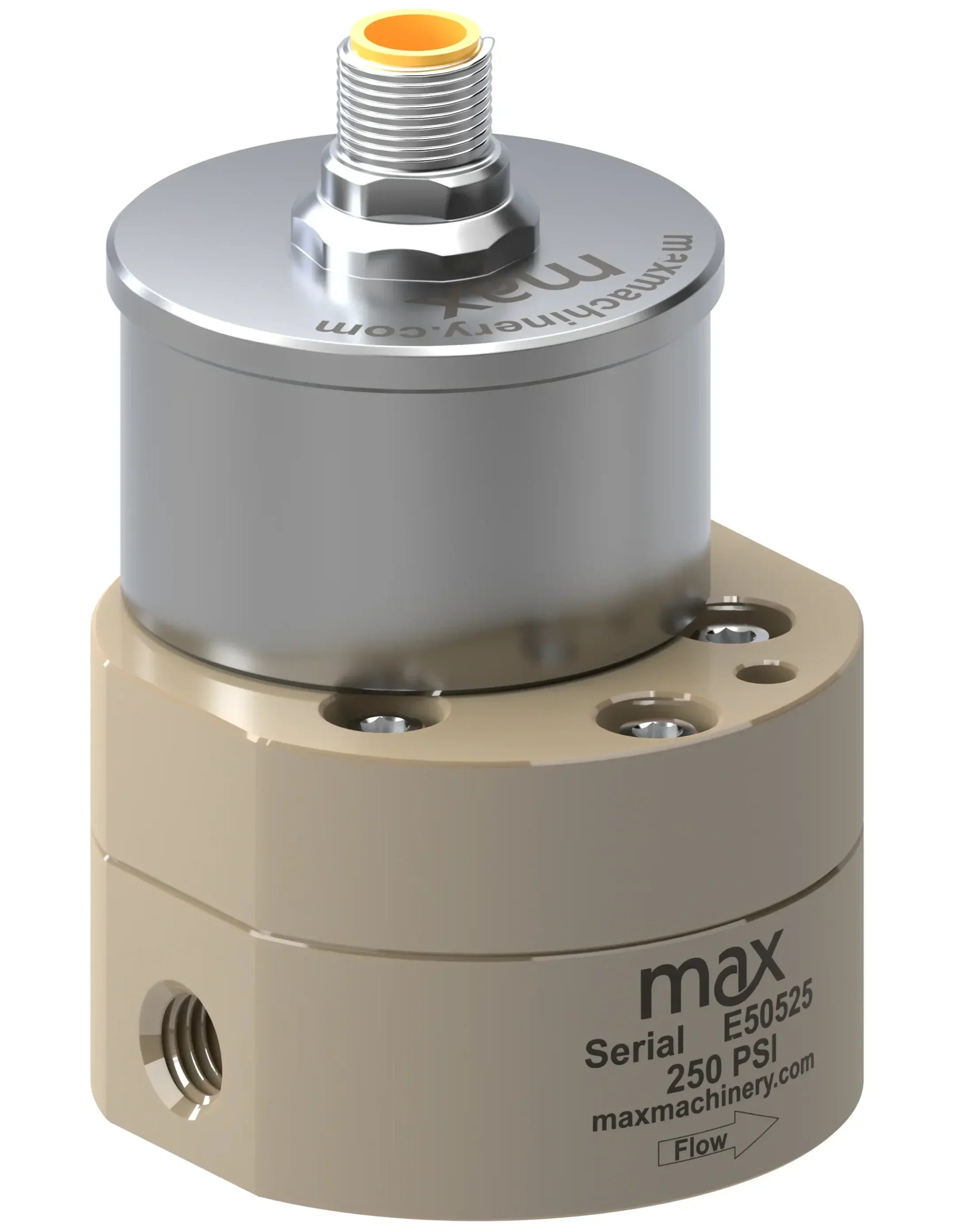

For a quote or to request additional information about our CGM1 gear flow meter, please submit your inquiry here.
