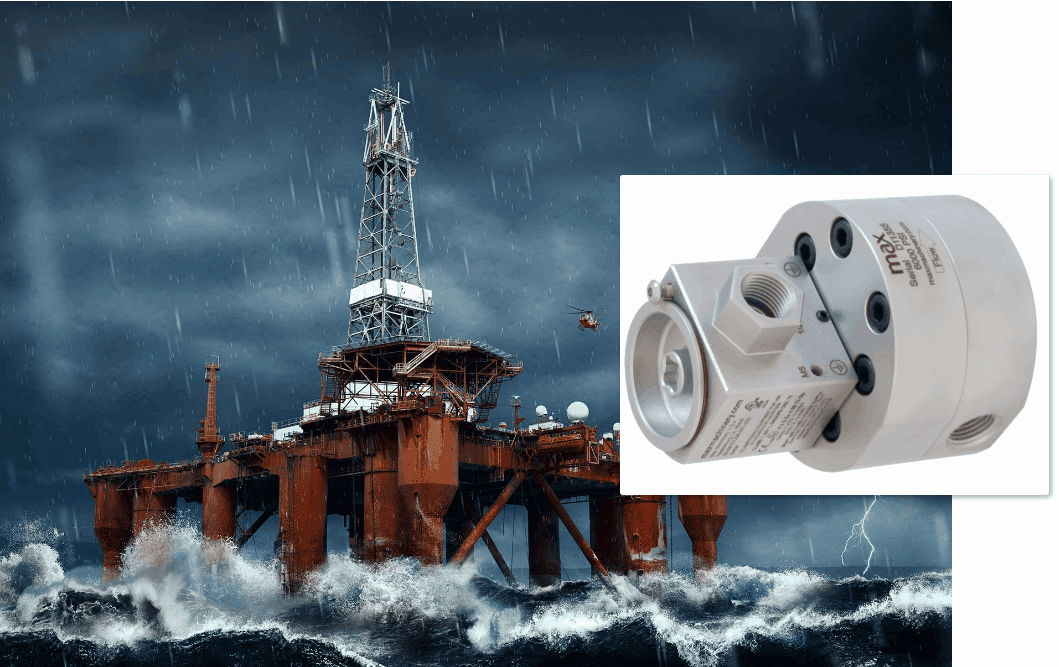

Gear Meters in 316 Stainless Steel. Precision and Accuracy in Harsh Environments.

Max Precision Flow Meters introduces 316 stainless steel bodies as our latest upgrade to the G-Series line of gear flow meters. When your application location calls for protection against corrosive environments and you need the highest accuracy and resolution available in gear meters, use the Max G-Series in 316 stainless steel.

Offering flow ranges from 0.015 L/min up to 45 L/min with 100:1 turndown ranges and up to 500 pulses/cc, Max gear meters can handle dosing and injection applications wherever your process is located. Hazardous location certified for ATEX, UL, and cUL Class 1 Div. 1 environments, the upgrade to 316 stainless steel means that you can bring your laboratory grade accuracy and precision in flow measurement to the field.

Request a quote today!


CE Certified, Ex-proof version with ATEX/IECEx II 2 G Ex db IIB Tx Gb as well as UL, cUL certification for Class 1, Division 1, Groups C and D, Tx.  Maximum temperature rating for ATEX certified transmitters is 130°C. 100:1 turn down range is for accuracy of ±0.3% of reading for 30 cP fluids.
