| Flow | 1cc/min to 2 liters/min |
| Port Size | 1/8″ NPT or 1/8” BSPP |
| Accuracy | (at 30 cP) ±1.0% of reading over a 100:1 range |
| Pressure | 250 psi (17 bar) |
| K-Factor | 500 pulses/cc |
| Fluids | Most aqueous and hydrocarbon-based fluids |
Gear Flow Meters

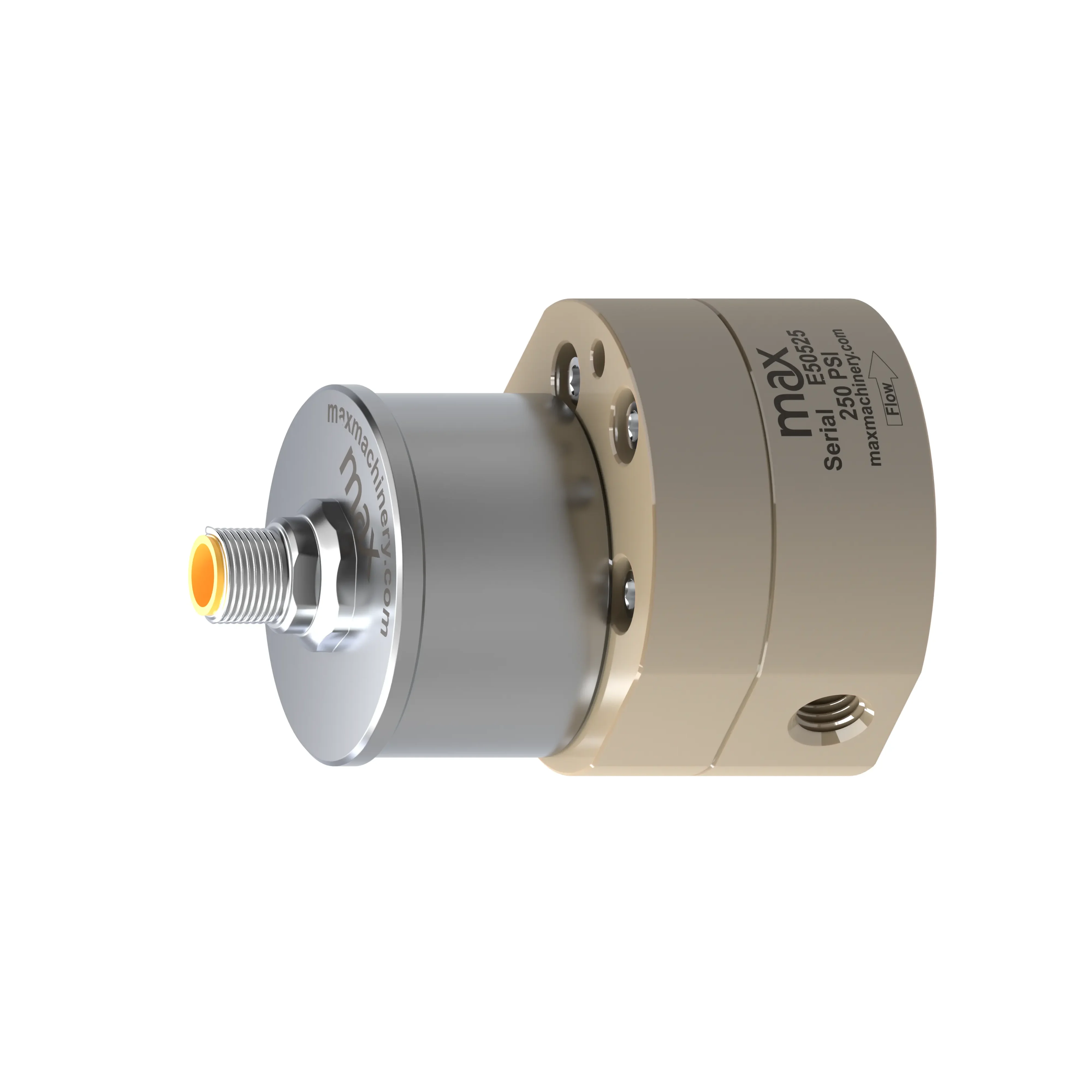

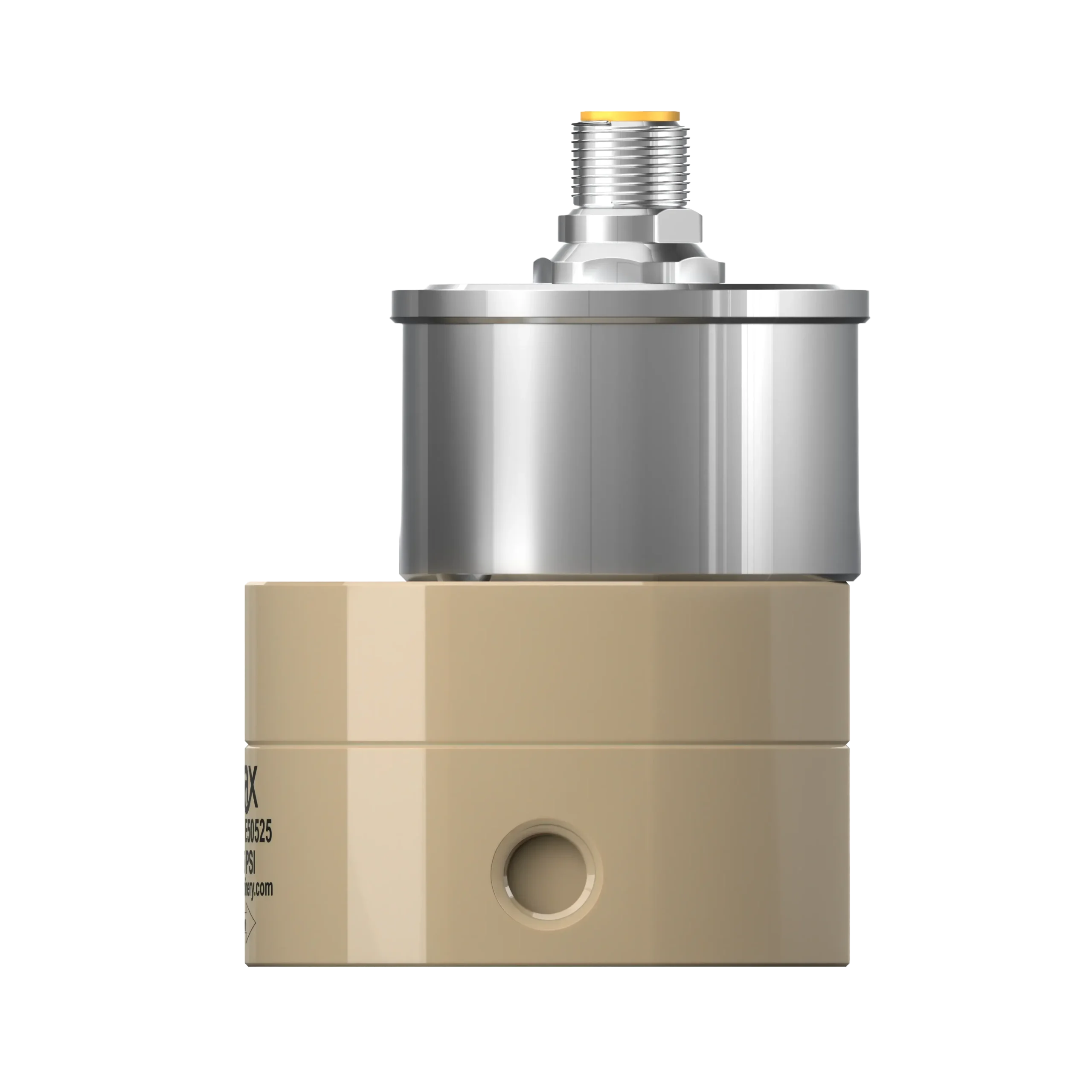

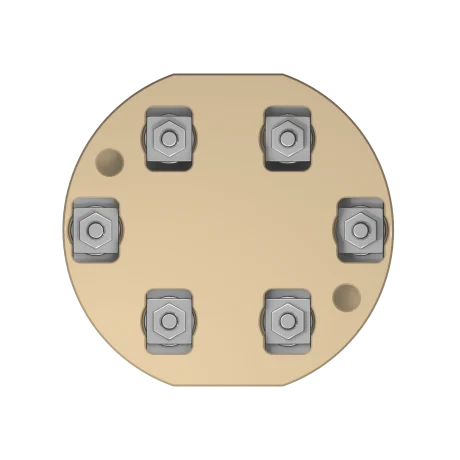

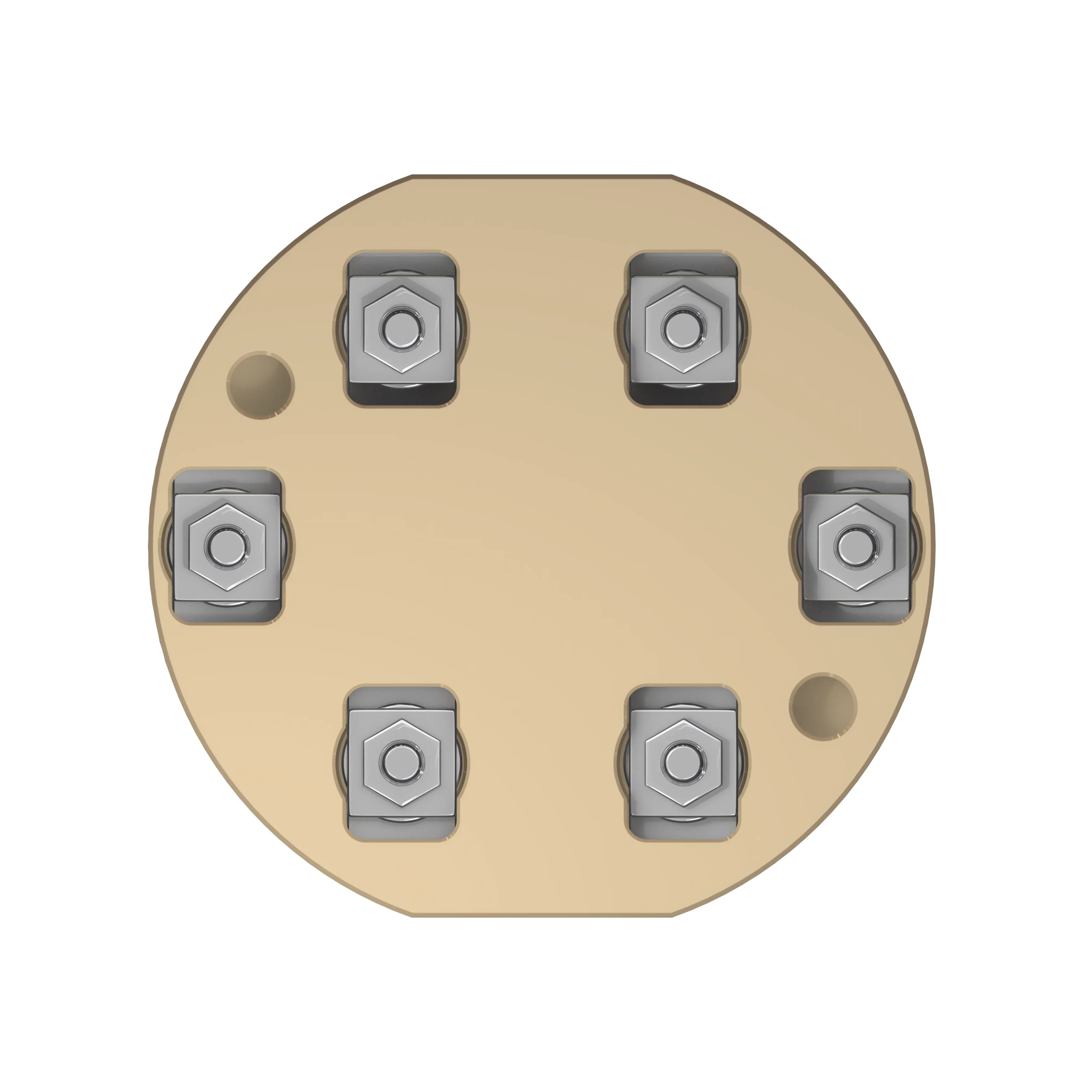

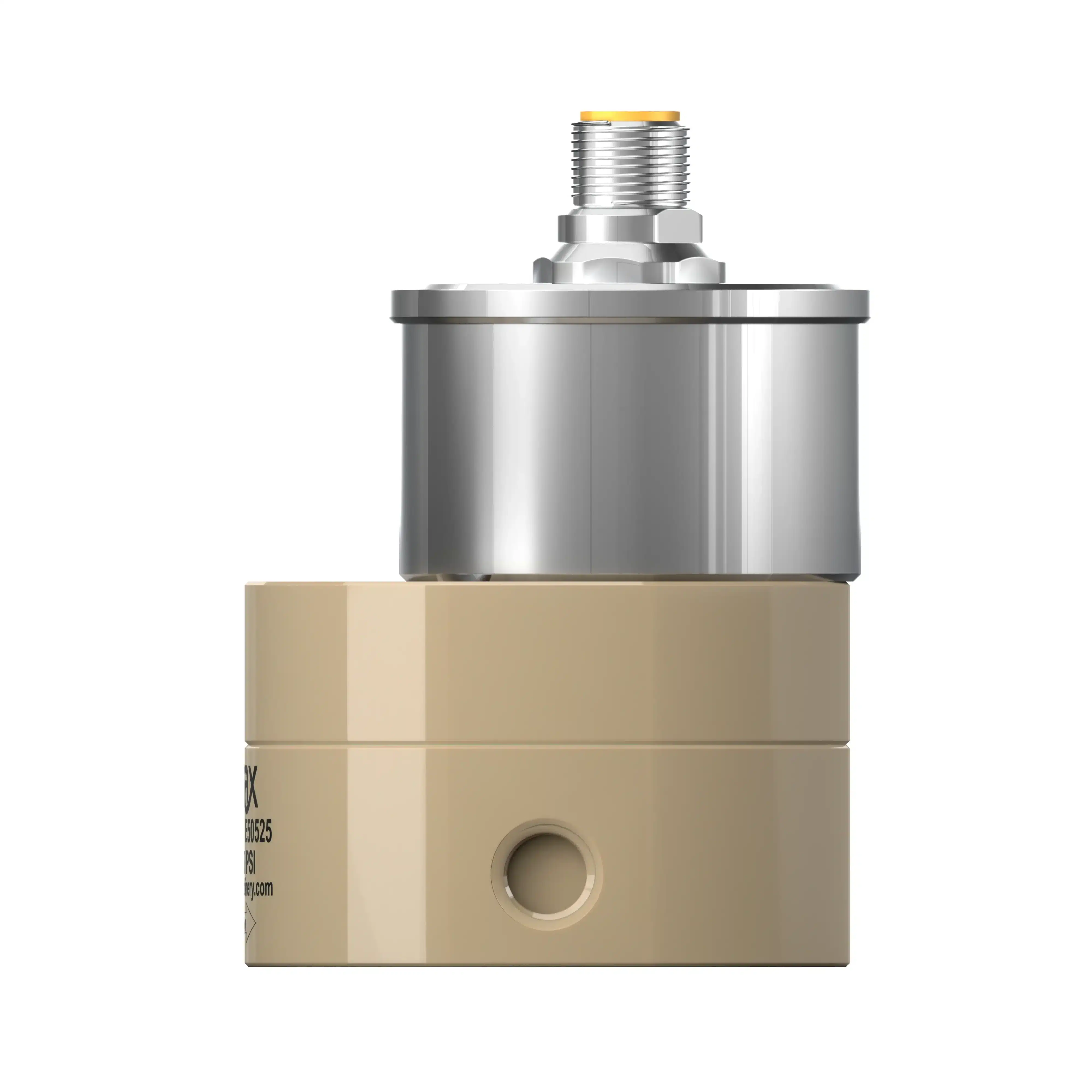

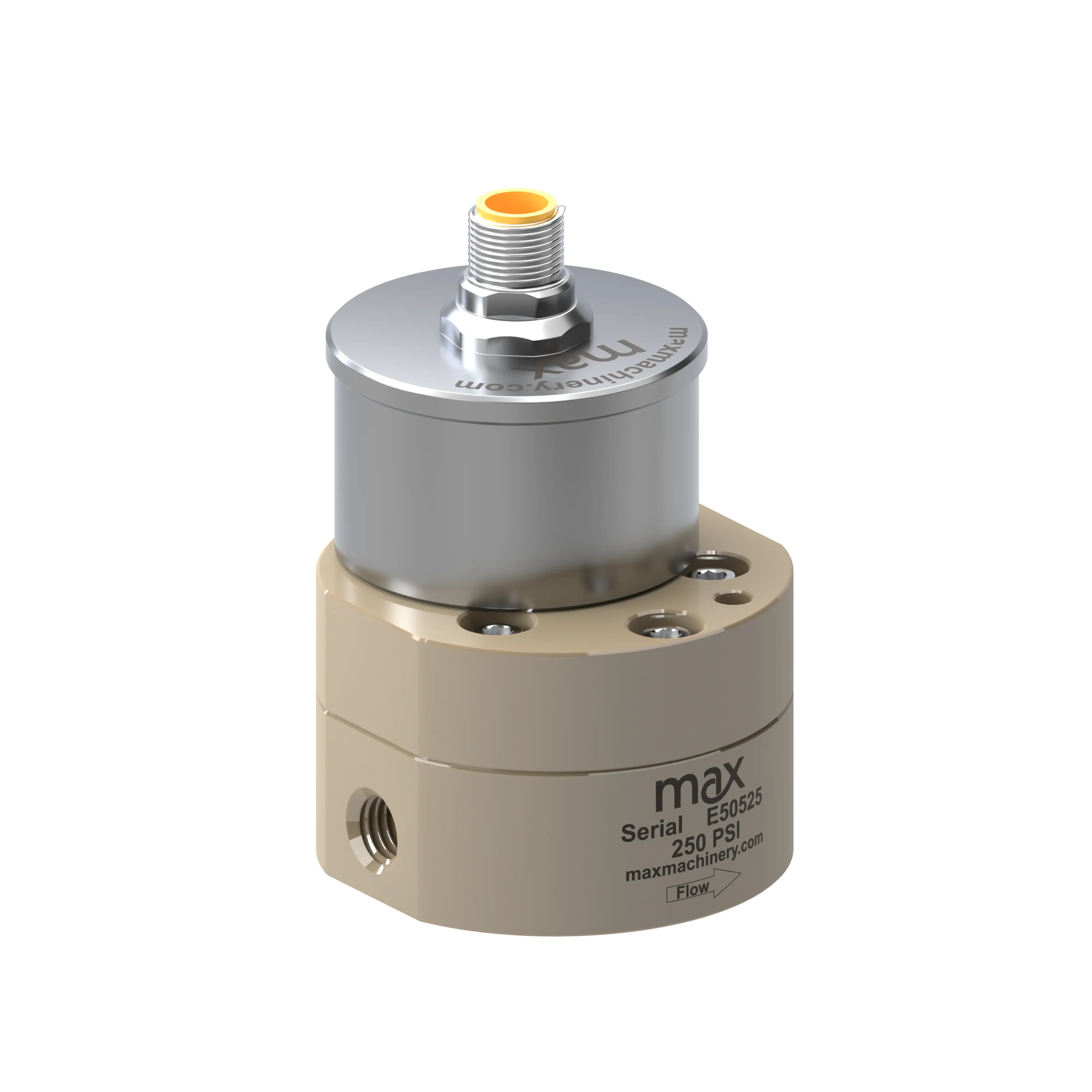

CGM1 Gear Flow Meter
The CGM1 is a positive displacement flow meter built for measurement of aqueous, corrosive, and non-lubricating fluids. It delivers ±1.0% of reading accuracy over a 100:1 turndown range, with stable performance across a wide range of flow rates and viscosities. The CGM1 is ideal for applications ranging from acidic and alkaline dosing to water-glycol and PVA systems.
Specifications
MECHANICAL
|
Filtration
|
10 Micron recommended
|
|
Weight
|
0.4kg (0.88 lbs)
|
MATERIALS OF CONSTRUCTION
|
External
|
Unfilled PEEK: Stainless Steel, type 303, 316, 17-7; FKM; |
|
Wetted
|
Unfilled PEEK: Zirconia(ZrO2)
|
|
O-Rings
|
Standard: FEPM (Fluoroelastomer)
Optional: FFKM (Perfluoroelastomer) |
TRANSMITTER VARIATIONS
|
Signal Type
|
Output
|
Resolution (K-Factor)
|
Std. Temp†
|
|---|---|---|---|
|
Frequency
|
5 Vdc, single phase
|
500 pulses/cc
|
70°C
|
|
Frequency
|
5 Vdc, quadrature (two phase)
|
250 pulses/cc/phase
|
70°C
|
|
Analog
|
0-10 VDC
|
Uni or Bi-directional
|
70°C
|
|
Analog
|
4-20 mA
|
Uni or Bi-directional
|
70°C
|
|
Compliance:
|
Application of Council Directive: 2014/30/EU electromagnetic compatibility directive
Standards to which Conformity is Declared: EN IEC 61326-1: 2021 Electrical equipment for measurement, control and laboratory use-EMC requirements Part 1: General requirements IP65 Rated |
||
Applications
Compatible with a wide range of harsh fluids including*:
- Acids and bases
- Agricultural chemicals
- Sanitization agents
- Industrial chemicals and reagents
- Adhesives
*Refer to fluid compatibility chart for a full list of fluids.
Downloads
| GEAR FLOW METERS | MANUAL | ANALOG SPEC SHEET | FREQUENCY SPEC SHEET | PN SELECTOR |
|---|---|---|---|---|
|

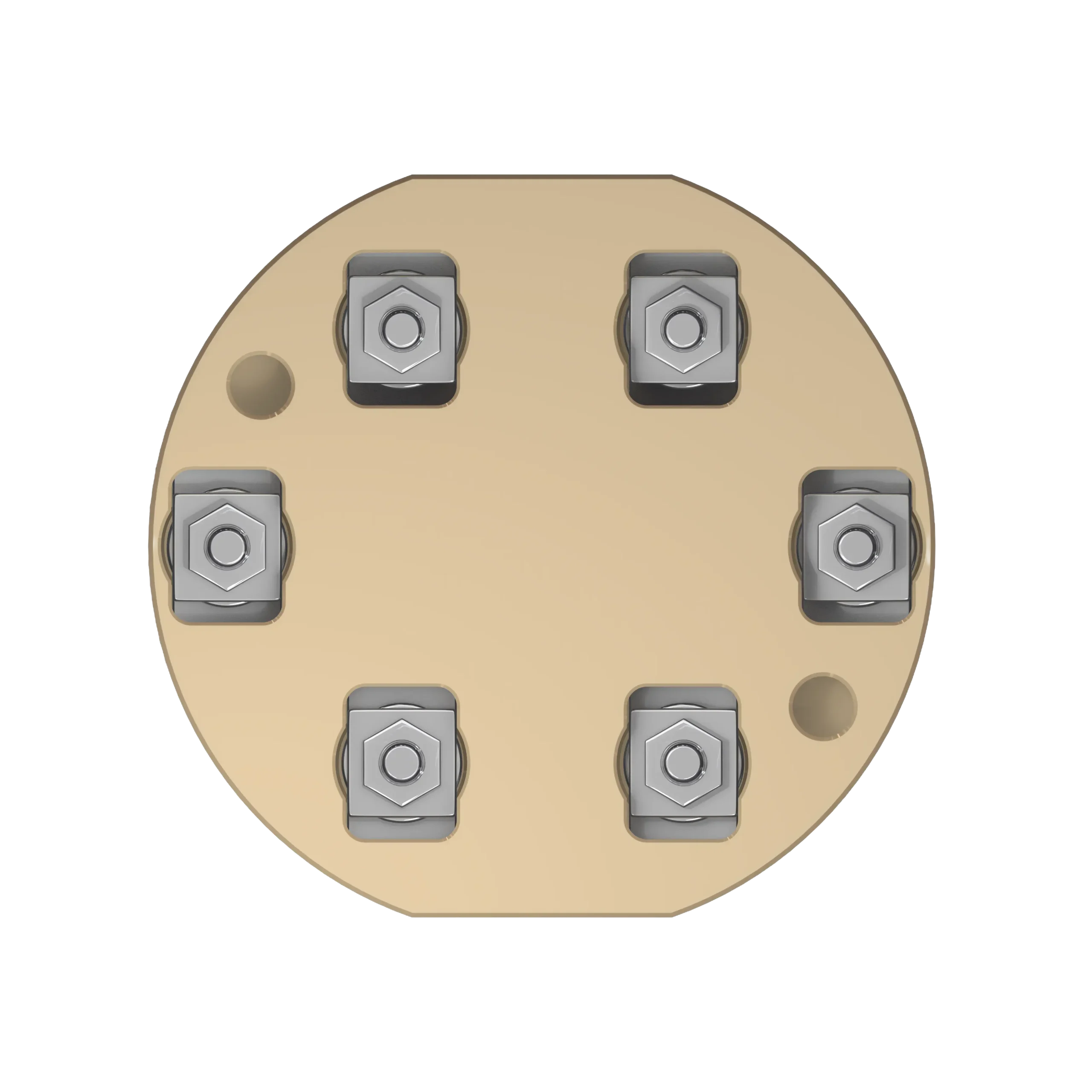

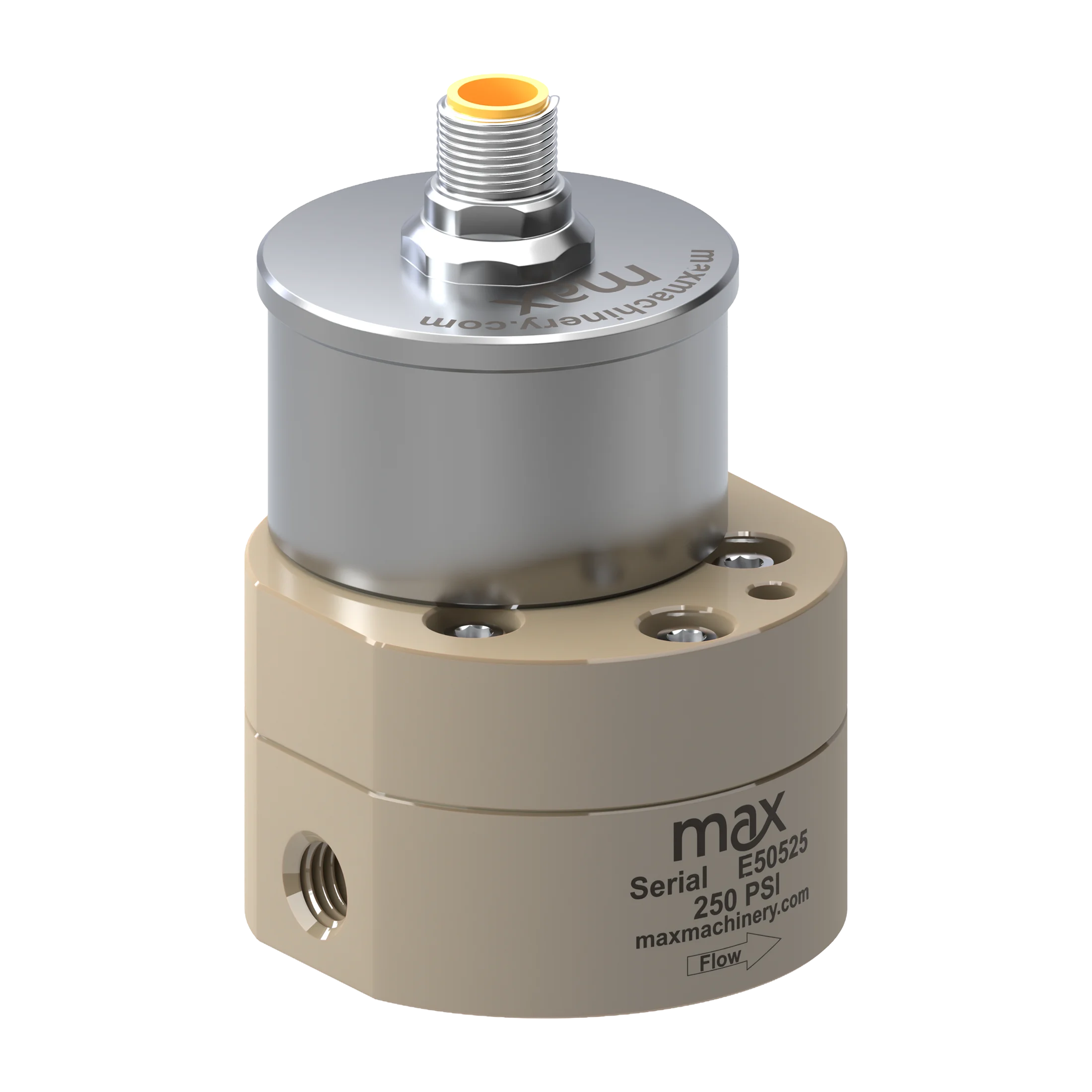

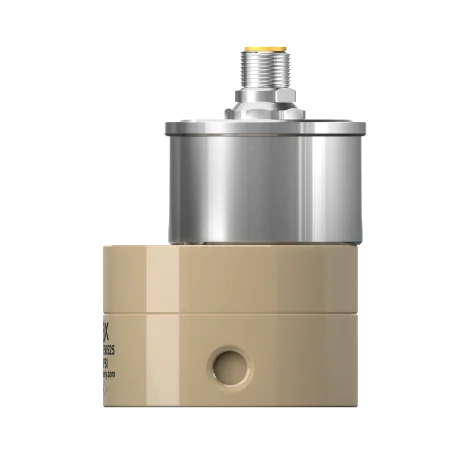

CGM1 Gear Flow Meter
|
 |
|
|
|

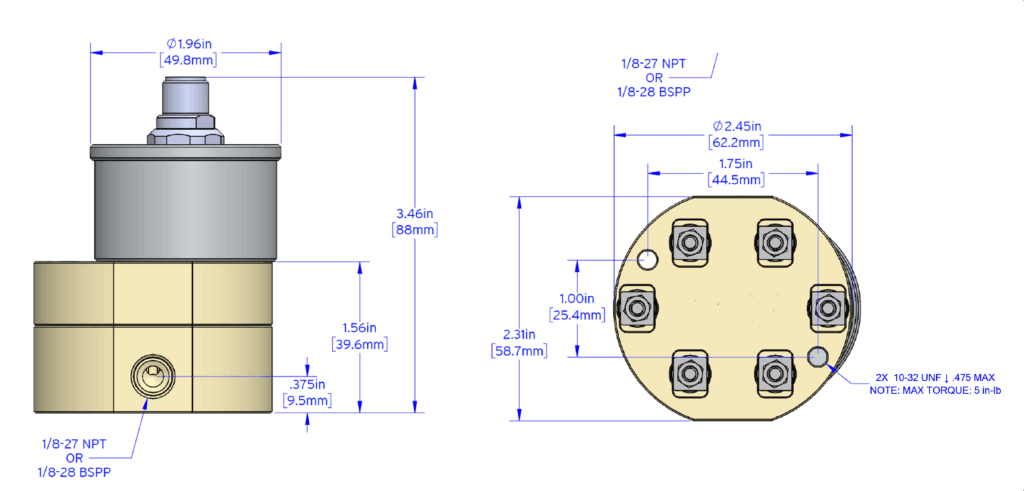

Drawings / Charts
