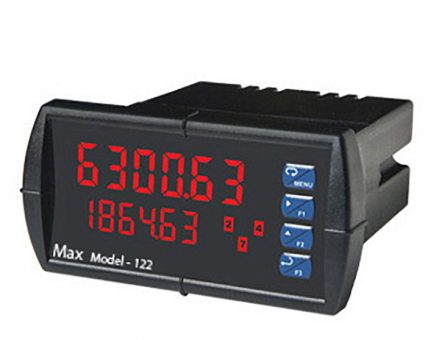

Model 122 Indicator with USB

Features • Onboard USB and MeterView® Software
• Dual-line 6-digit displays, 0.60″ & 0.46″ tall
• Pulse input, single K-factor or linearization table
• RS-485 serial port with Modbus® RTU protocol
• Programmable display of any engineering units
• 110/220 Vac powered
• Accessory power – 24Vdc
• Front panel sealed to NEMA 4X rating
• UL rated and CE approved
Category:
• Cut-out Dimensions 3.622″ X 1.772″ (92mm X 45mm)
• Dual-line 6-digit displays, 0.60″ & 0.46″ tall
• 9 digit totalizer with overflow indication
• Isolated 4-20mA output programmable to flow rate, min/max, total or grand total
• Pulse input, single K-factor or linearization table
• Displays assignable to rate & total, min/max or alternating measurement and units
• Rate display smoothing is adjustable via the low gate setting
• Indicator can be scaled and programmed off-line
• RS-485 serial port with Modbus® RTU protocol
• Programmable display of any engineering units
• Multi-level security password(s) for programming and total
• Non Volatile memory maintains programming and total
• 110/220 Vac powered
• Accessory power – 24Vdc
• Front panel sealed to NEMA 4X rating
• UL rated and CE approved

Downloads

USB VERSION MANUAL SPECIFICATION SHEETS PROGRAMMING INSTRUCTIONS WIRING DIAGRAM
Model 122 Indicator with USB
PDF Icon PDF Icon PDF Icon PDF Icon
