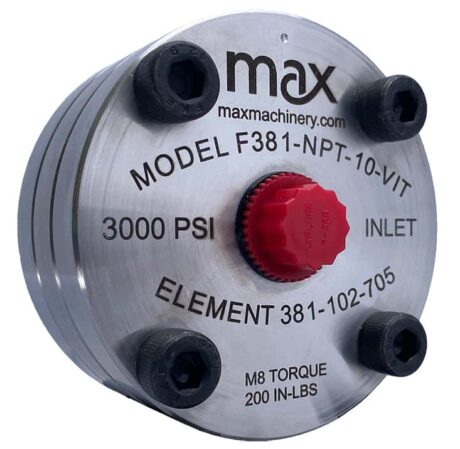

F381 Filters

Keep your process protected from debris damage. Save a costly rebuild due to contamination. Filter your fluid with a Max replaceable filter. Install the filter housing and then replace the filter elements on a schedule right for your application. 5, 10, and 30 Micron filters available.

Category:

Element Stainless Steel woven mesh
Size(s) 5, 10, and 30 Micron
Pressure 3000 psi (207 bar)
Port Size 3/8” NPT, #6 SAE, 3/8 BSPP*
Weight 1.34 kg (2.95 lbs)

*Consult Factory for Availability

Specifications

MATERIALS OF CONSTRUCTION
Body
Stainless steel, type 303
Element
Stainless steel, type 304
O-Rings
Standard: Viton®
Optional: Teflon®, Perfluoroelastomer, Neoprene
VARIANTS
F381
xxx
xxx
xxx
Std. Body (3000 psi)
Options
NPT
3/8” NPT ports
SAE
#6 SAE ports
BSP*
3/8 BSPP ports*
5
5 Micron element
10
10 Micron element
30
30 Micron element
VIT
Viton® O-Rings
TEF
Teflon® O-Rings
PER
Perfluoroelastomer O-Rings
NEO
Neoprene O-Rings
* Consult Factory for Availability
REPLACEMENT FILTER ELEMENT KITS
381-102-705
10 Micron replacement element with Viton® seals
381-102-715
10 Micron replacement element with Neoprene seals
381-102-725
10 Micron replacement element with Teflon® seals
381-103-705
5 Micron replacement element with Viton® seals
381-103-725
5 Micron replacement element with Teflon® seals
381-104-705
30 Micron replacement element with Viton® seals
381-104-725
30 Micron replacement element with Teflon® seals

Applications

Downloads

DOWNLOADS MANUAL PN SELECTOR SPECIFICATION SHEETS STEP FILES
F381 Filters and Filter Elements
PDF Icon PDF Icon PDF Icon

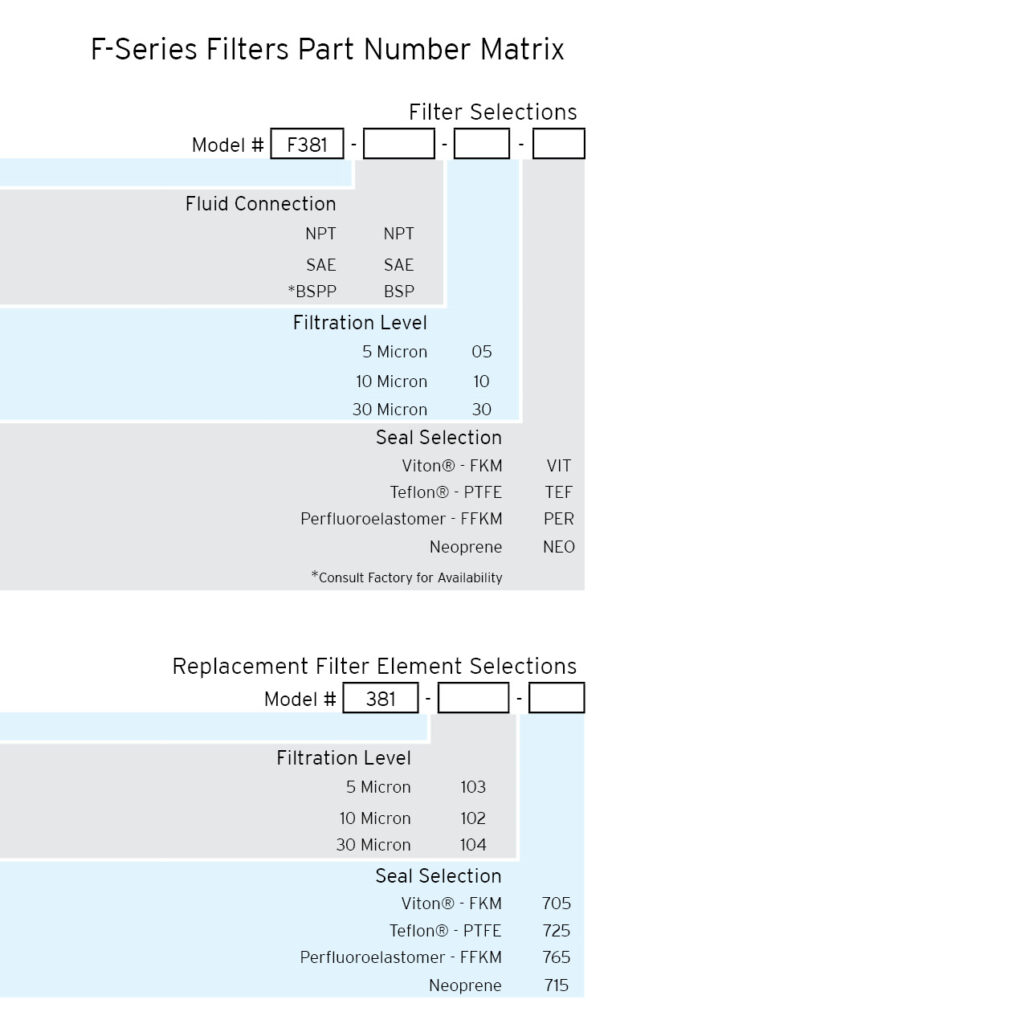

Product Selection Matrix

FSeries PartNumber Selector Web Rev2022
