Odorant Injection Measurement

Max has been the industry leader for injection measurement for 40 years

Meter Features:

- Resolution to 0.001 cc
- Drift free accuracy, for decades of service
- Accuracy not affected by start/stop flow
- ATEX, UL and cUL approved
- Pressure rating of 210 Bar (500 Bar, optional)

        Hazardous location flow measurement                                                            Injection measurement in hazardous locations

Standard Flow: Model P213                                      Flowrates above 1500 cc/min: Model P214

Read more below:

                                    Accurate measurement of odorant into natural gas and propane

Telltale warnings can save lives. The first line of defense in safely using natural gas is an effective odorization program. An effective program is one that consistently monitors the gas flow, computes and injects the proper dosage of odorant, and most importantly records this activity.

Typically, state regulations dictate the minimum odorant concentration. Since these odorants (mercaptan organosulfurs being the most common) are expensive, there are also economic concerns regarding excessive dosing.

Common mercaptan doses are in the range of 2 – 4 ppm (by volume, to gas); this translates to about
1 – 200 cc/minute, depending on pipeline size and natural gas velocity.

Robust flow monitoring equipment is essential to ensure proper odorization of natural gas; low flow measurement, accuracy, repeatability and easily-integrated signals for SCADA systems and PLC’s are required.

The inherent capabilities of Max flow meters have made us an industry standard for odorant measurement by local distribution companies and citygate sites.

Max equipment specified:

The Model P213 is used to accurately measure instantaneous injection rates from 1 - 1500 cc/minute. For instantaneous rates above 1500 cc/minute the Model P214 is the recommended meter. A high resolution transmitter (1000 pulses/cc – Model P213) is required because of the low flow and sudden on-off conditions associated with odorant injection pumps. If you have a similar project, please ask for a quote.

“Our Max meters have not missed a beat in 15 years.  If you could give equipment an award, these meters would definitely get one”

– Tom W. Major Canadian LPG provider.

Products Specified for this Application

Precision low flow meter Model P213
0.5 to 1800 cc/min (0 to 0.48 gpm) with a 210 bar (3000 psi) pressure rating

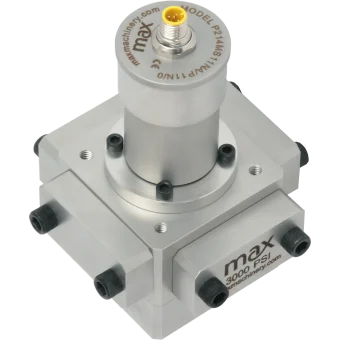

High accuracy flow meter Model P214
