| Flow | 0.5 to 1800 cc/min; 0 to 0.48 gpm |
| Port Size | 1/8″ NPT, #4 SAE or manifold mount |
| Accuracy | (at 3 cP): ± 0.2% of reading over a 200:1 range |
| Pressure | 3000 psi (210 bar) maximum |
| K-Factor | 1,000 pulses/cc |
| Fluids | Most non-aqueous, hydrocarbon based fluids |
Piston Flow Meters

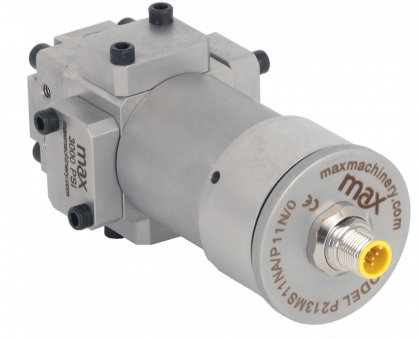

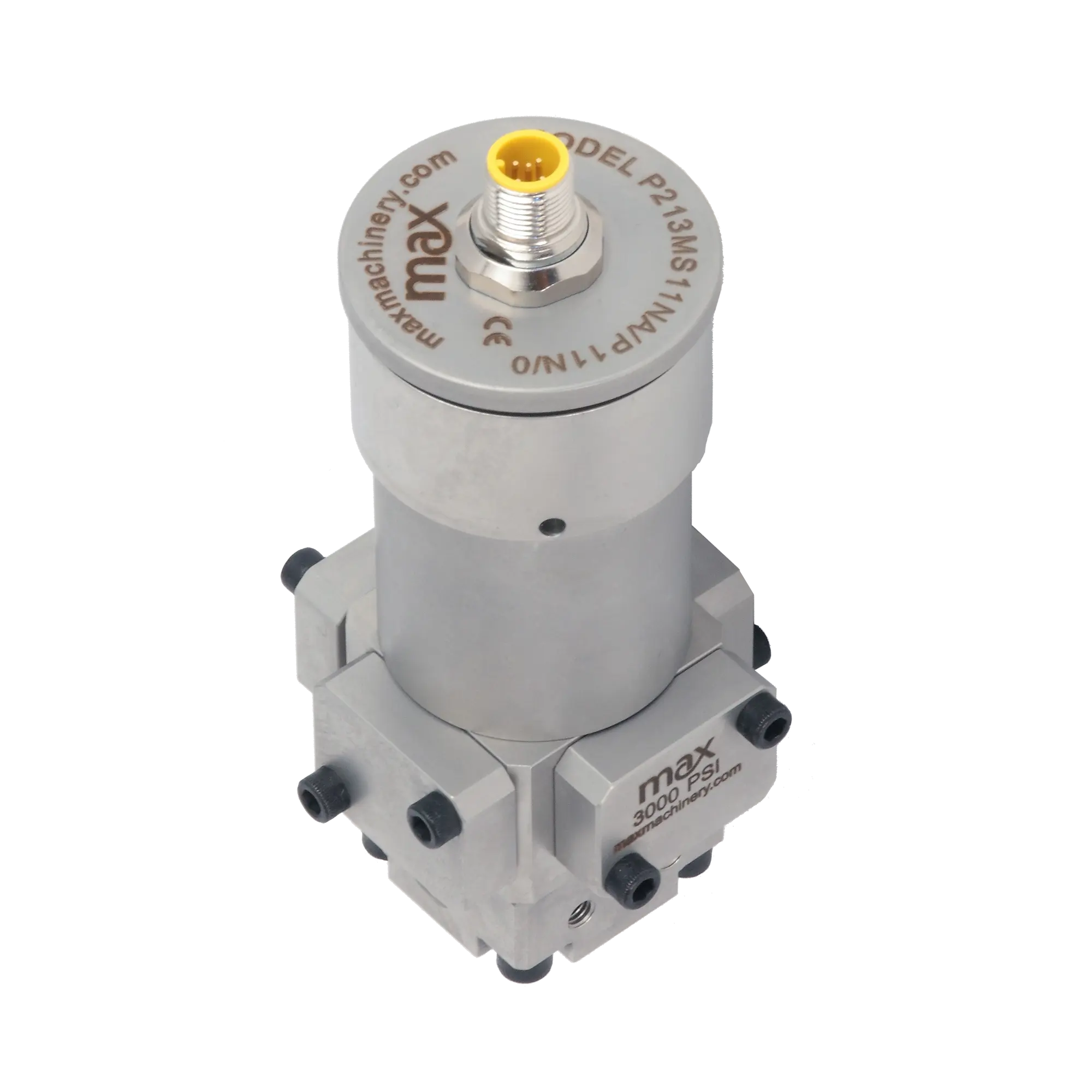

P213 Piston Flow Meter
High resolution, bi-directional, and quadrature signal outputs make Max Piston Flow Meters the choice in measuring low flows, rapid valve cycling, and chemical injection.
Max Piston Meters are not sensitive to changes in flow profile, fluid density, or viscosity. No straight pipe runs or flow conditioners needed.

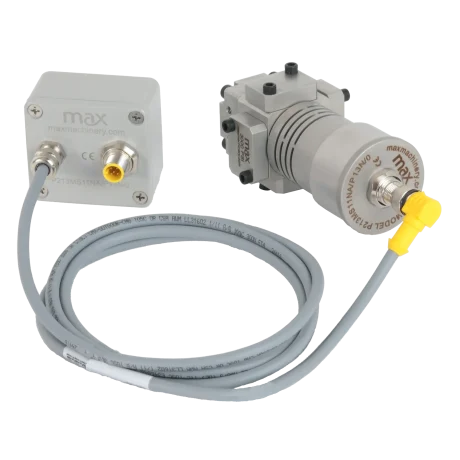

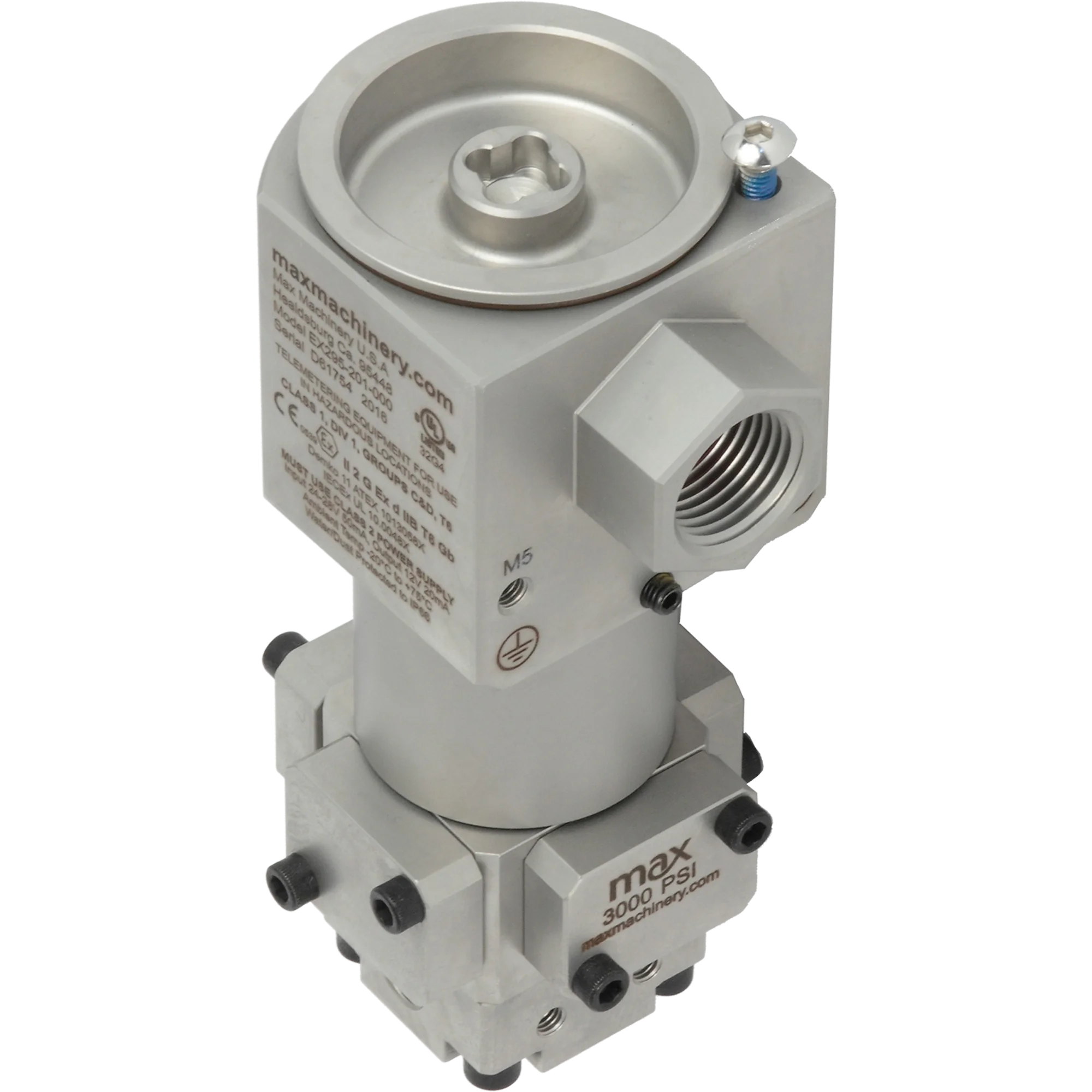

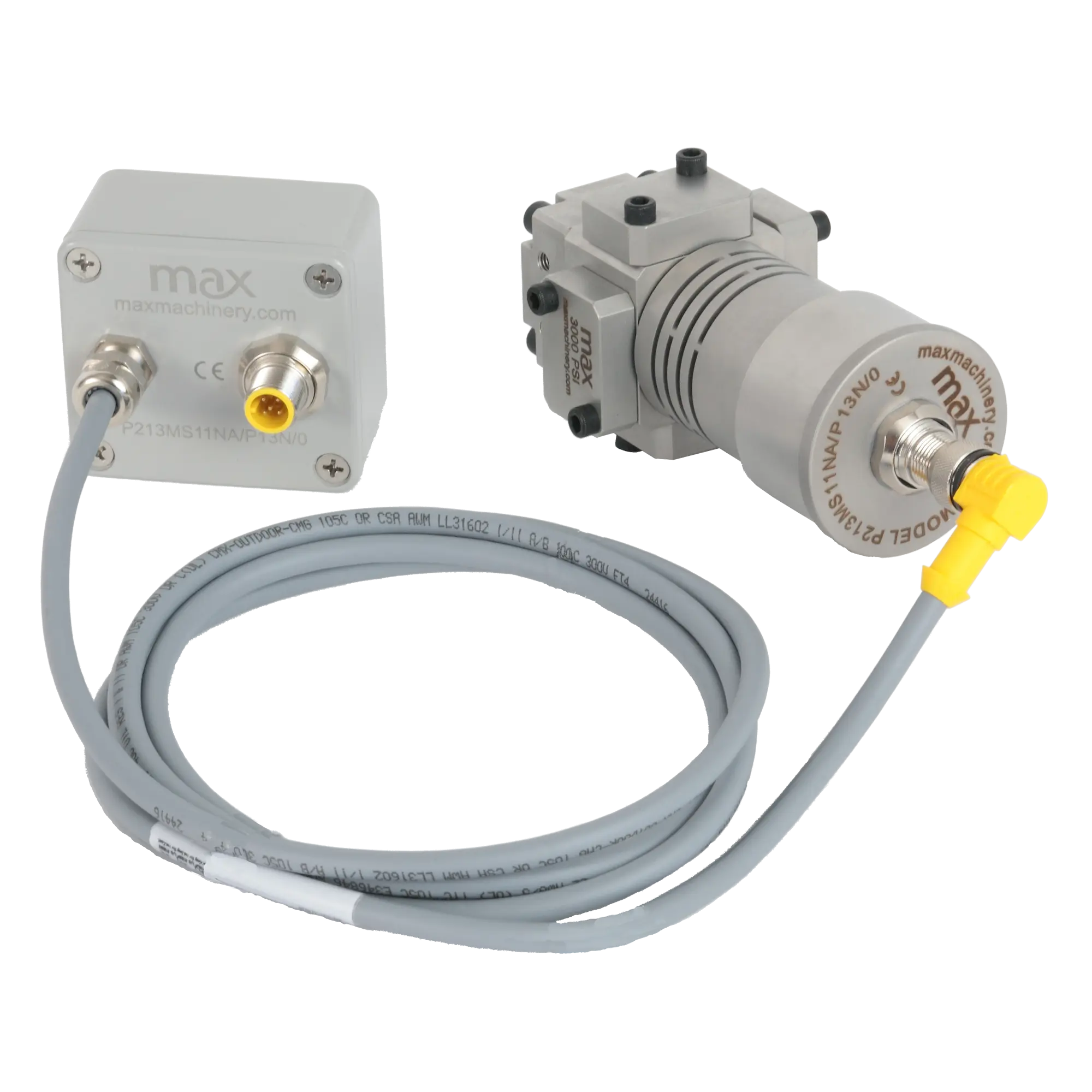

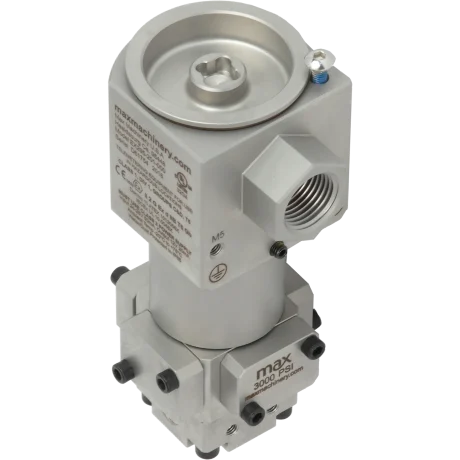

Choose from frequency or analog transmitter options. High temperature models up to 225°C available. CE Certified, Ex-proof version available with ATEX/IECEx and UL/cUL certifications.
- Description
- Specifications
- Applications
- Downloads
- Drawings / Charts
- Product Selection Matrix
- Reviews (0)
Specifications
MECHANICAL
|
Filtration
|
10 Micron recommended
|
|
Weight
|
1.0 kg (2.20 lbs)
|
MATERIALS OF CONSTRUCTION
|
External
|
Stainless Steel, type 303; Xylan coated bolts
|
|
Wetted
|
Stainless steel, type 303, Nitrided type 303, 440C;
Alnico magnet |
|
O-Rings
|
Standard: Viton®
Optional: Teflon®, Perfluoroelastomer, Neoprene |
TRANSMITTER VARIATIONS
|
Signal Type
|
Output
|
Resolution (K-Factor)
|
Std. Temp†
|
High Temp†
|
Ultra Temp
|
|---|---|---|---|---|---|
|
Frequency
|
5 VDC square wave (current sinking available)
|
1,000 pulses/cc
|
90°C
|
EX†
|
225°C
|
|
Frequency
|
5 VDC quadrature (2-phase)
|
500 pulses/cc/phase
|
90°C
|
EX†
|
225°C
|
|
Analog
|
0-10 VDC
|
Uni or Bi-directional
|
90°C
|
EX†
|
225°C
|
|
Analog
|
4-20 mA
|
Uni or Bi-directional
|
90°C
|
EX†
|
225°C
|
|
Compliance:
|
CE Certified, Ex-proof version available with ATEX/IECEx II 2 G Ex db IIB Tx Gb as well as UL, cUL certification for Class 1, Division 1, Groups C and D, Tx.†Maximum temperature rating for ATEX certified transmitters is 75°C Std. Temp and 130°C High Temp.
|
||||
Applications
-
Odorant Injection Measurement
Odorant Injection Measurement Telltale warnings can save lives. Safely using natural gas requires an effective odorization…
-
Aviation Hydraulic Testing
Testing of hydraulic fluid throughout an aircraft’s hydraulic pumps, motors, cylinders and actuators to operate wheel…
-
Valve Leak Testing
Flow measurement is used during 100% certification of performance over a valve’s full range of criteria….
-
Chemical Additives Injection Measurement
Chemical additives injection is a broad description for a varied set of applications that require a…
-
Gasoline and Diesel Fuel Measurement
Gasoline and diesel fuel measurement from single injector testing to on-vehicle flow measurement across the automotive…
-
Flow Meters for Measuring Brake Fluid In-line
Brake Fluid In-Line Flow Testing. Flow measurement is used for mapping flow profiles, testing for system…
