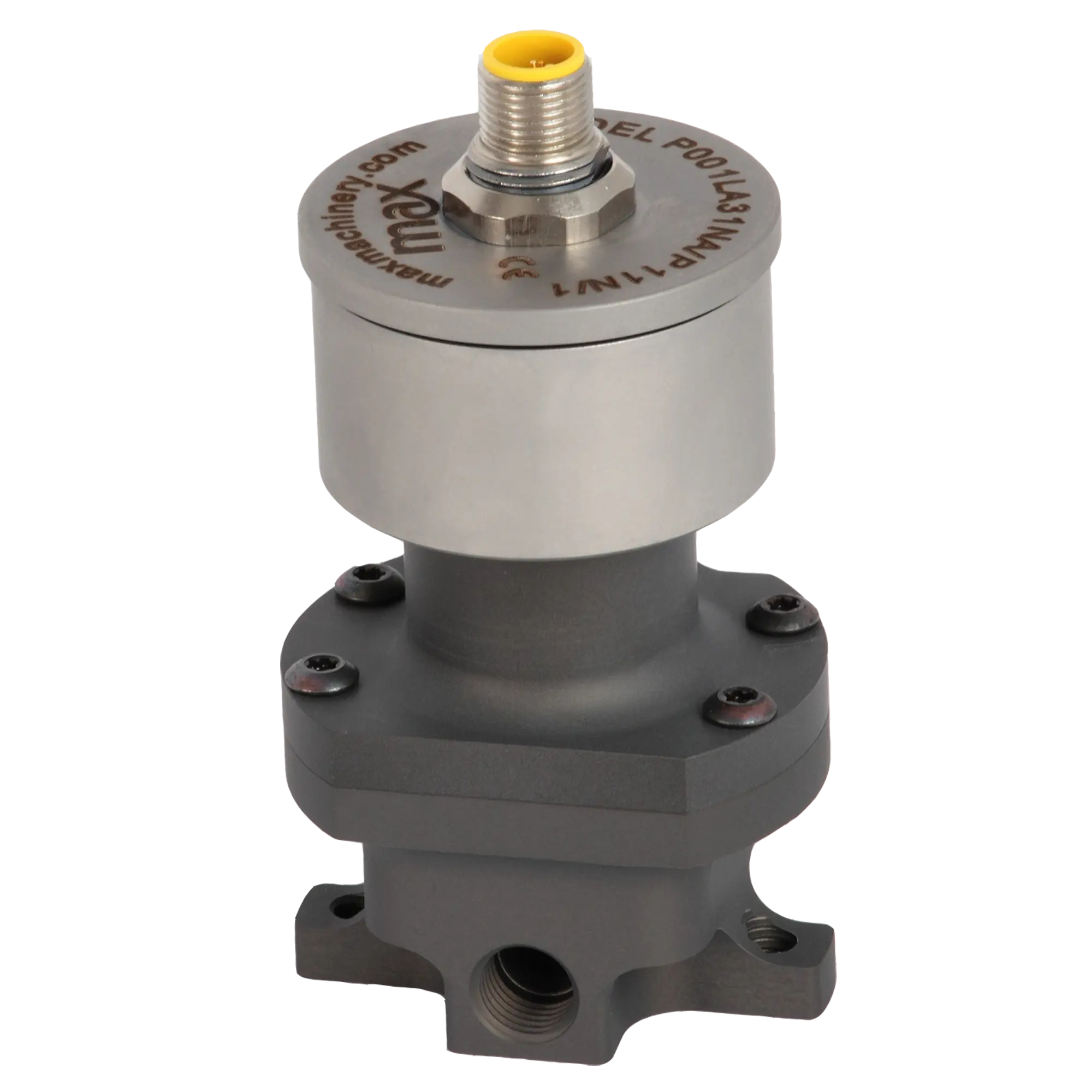

P001LA Piston Flow Meter

Dynamic flow industries like aerospace/automotive testing, machine tool cycling, and valve testing rely on Max meters to provide high resolution rapid 1.6 millisecond response times for their data collection.

Max Piston Meters are not sensitive to changes in flow profile, fluid density, or viscosity. No straight pipe runs or flow conditioners needed.

Choose from frequency or analog transmitter options. High temperature models up to 225°C available. CE Certified, Ex-proof version available with ATEX/IECEx and UL/cUL certifications.

Category:

Flow 0.005 to 200 cc/min; 0 to 0.053 gpm
Port Size 1/4″ or 6mm tube fitting
Accuracy (at 3 cP): ± 0.2% of reading over a 200:1 range
Pressure 250 psi (17 bar) maximum
K-Factor 12,000 pulses/cc
Fluids Most non aqueous, hydrocarbon based fluids

Specifications

MECHANICAL
Filtration
5 Micron recommended
Weight
0.9 lbs (0.4 kg)
MATERIALS OF CONSTRUCTION
External
Aluminum, Hard Anodized, type 6061; Xylan coated bolts
Wetted
Hard anodized aluminum type 6061; Stainless steel, type 316, Case Hardened type 316, Specialty 400 Series; Nickel plated SmCo magnet
O-Rings
Standard: Viton®
Optional: Perfluoroelastomer
TRANSMITTER VARIATIONS
Signal Type
Output
Resolution (K-Factor)
Std. Temp†
High Temp†
Ultra Temp
Frequency
5 VDC square wave (current sinking available)
12,000 pulses/cc
90°C
N/A
N/A
Frequency
5 VDC quadrature (2-phase)
6,000 pulses/cc/phase
90°C
N/A
N/A
Analog
0-10 VDC
Uni or Bi-directional
90°C
N/A
N/A
Analog
4-20 mA
Uni or Bi-directional
90°C
N/A
N/A
Compliance:
Industrial transmitter only. See P001 product page for hazardous location compliant meters.
