| Flow | 0.5 to 2000 cc/min; 0 to 0.53 gpm |
| Port Size | # 4 SAE |
| Accuracy | (at 3 cP): ± 0.2% of reading over a 200:1 range |
| Pressure | 7250 psi (500 bar) maximum |
| K-Factor | 1,000 pulses/cc |
| Fluids | Most non aqueous, hydrocarbon based liquids |
Piston Flow Meters

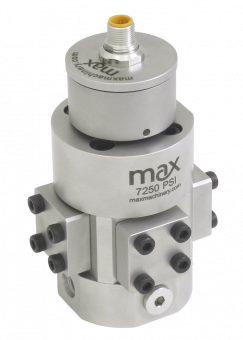

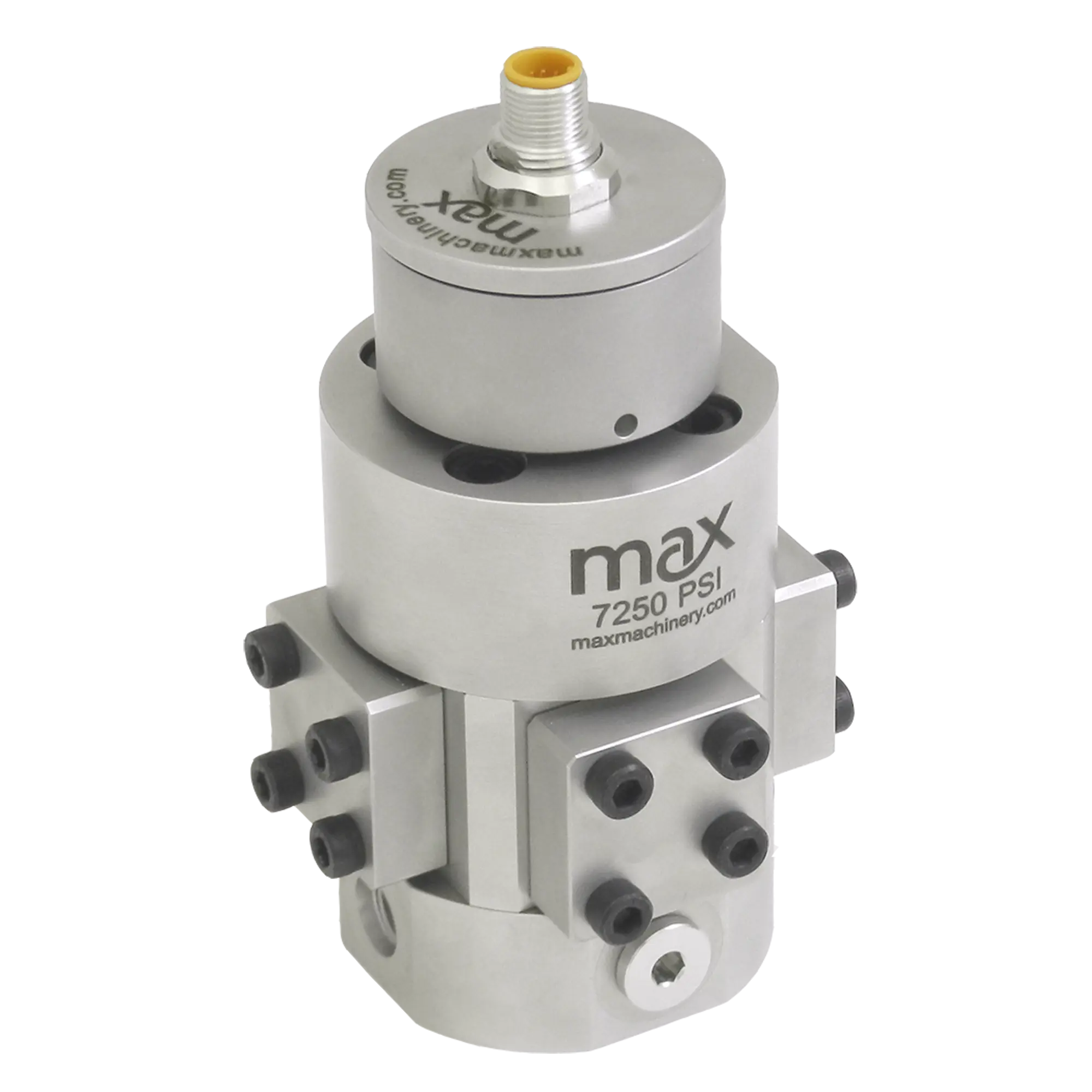

P002 Piston Flow Meter
Dynamic flow industries like aerospace/automotive testing, machine tool cycling, and valve testing rely on Max meters to provide high resolution rapid 1.6 millisecond response times for their data collection.
Max Piston Meters are not sensitive to changes in flow profile, fluid density, or viscosity. No straight pipe runs or flow conditioners needed.
Choose from frequency or analog transmitter options. High temperature models up to 225°C available. CE Certified, Ex-proof version available with ATEX/IECEx and UL/cUL certifications.
Specifications
MECHANICAL
|
Filtration
|
10 Micron recommended
|
|
Weight
|
1.9 kg (4.18 lbs)
|
MATERIALS OF CONSTRUCTION
|
External
|
Stainless Steel, type 303; Xylan coated bolts
|
|
Wetted
|
Stainless steel, type 303, Nitrided 303, 440C;
Nickel Plated SmCo Magnet |
|
O-Rings
|
Standard: Viton®
Optional: Perfluoroelastomer |
TRANSMITTER VARIATIONS
|
Signal Type
|
Output
|
Resolution (K-Factor)
|
Std. Temp†
|
High Temp†
|
Ultra Temp
|
|---|---|---|---|---|---|
|
Frequency
|
5 VDC square wave (current sinking available)
|
1,000 pulses/cc
|
90°C
|
155°C
|
225°C
|
|
Frequency
|
5 VDC quadrature (2-phase)
|
500 pulses/cc/phase
|
90°C
|
155°C
|
225°C
|
|
Analog
|
0-10 VDC
|
Uni or Bi-directional
|
90°C
|
155°C
|
225°C
|
|
Analog
|
4-20 mA
|
Uni or Bi-directional
|
90°C
|
155°C
|
225°C
|
|
Compliance:
|

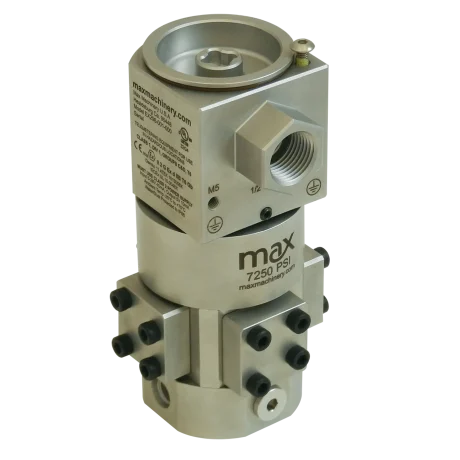

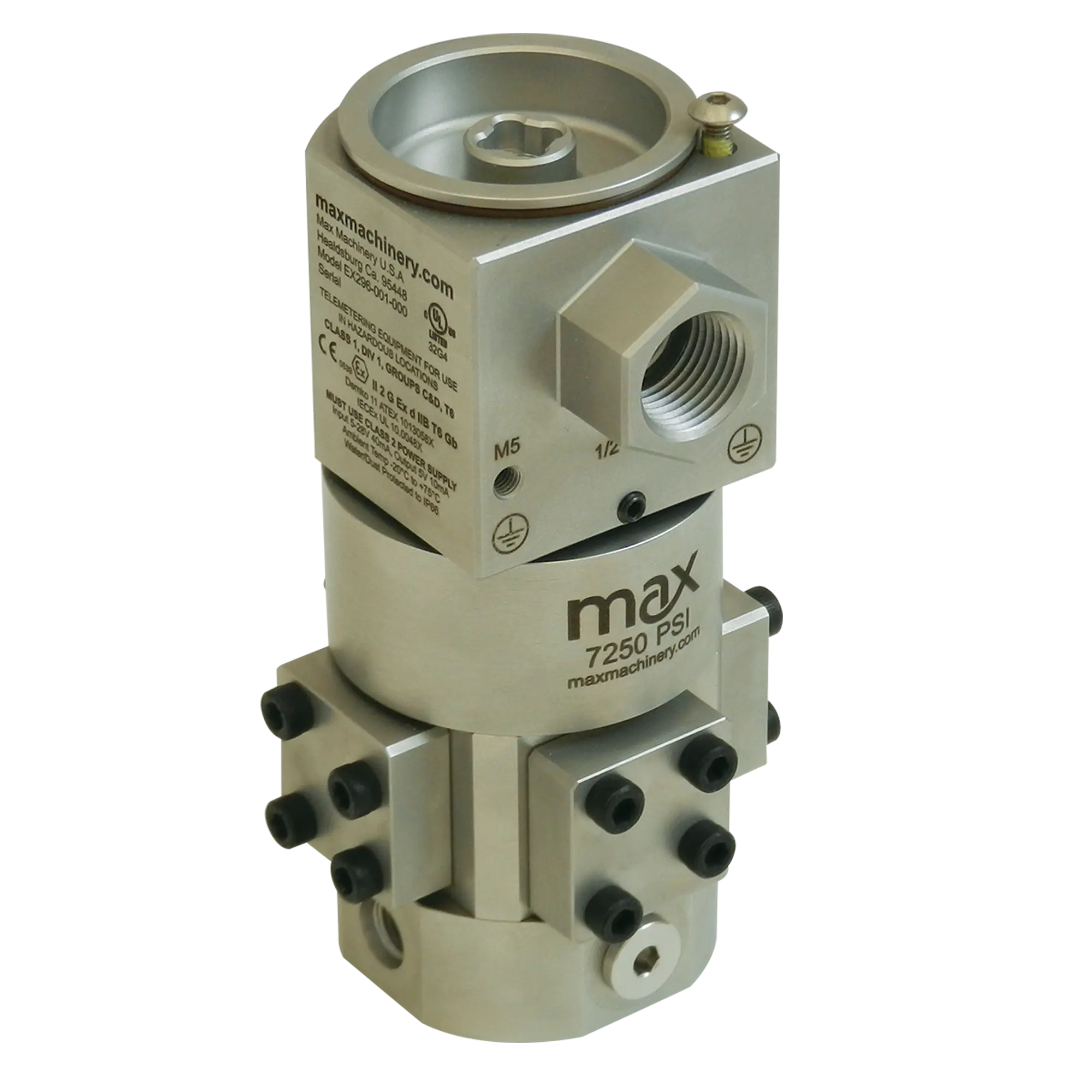

CE Certified, Ex-proof version available with ATEX/IECEx II 2 G Ex db IIB Tx Gb as well as UL, cUL certification for Class 1, Division 1, Groups C and D, Tx.†Maximum temperature rating for ATEX certified transmitters is 75°C Std. Temp and 130°C High Temp.
|
||||
Applications
-
Aviation Hydraulic Testing
Testing of hydraulic fluid throughout an aircraft’s hydraulic pumps, motors, cylinders and actuators to operate wheel…
-
Chemical Additives Injection Measurement
Chemical additives injection is a broad description for a varied set of applications that require a…
-
Hydraulic Valve, Pump, and Cylinder Testing
Testing of hydraulic valves, pumps and cylinders covers a wide range of flows. From full flow…
-
Gasoline and Diesel Fuel Measurement
Gasoline and diesel fuel measurement from single injector testing to on-vehicle flow measurement across the automotive…
