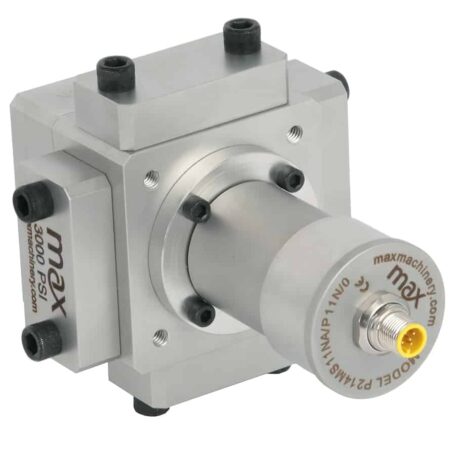

P214 Piston Flow Meter

High resolution, bi-directional, and quadrature signal outputs make Max Piston Flow Meters the choice in measuring low flows, rapid valve cycling, and chemical injection.

Max Piston Meters are not sensitive to changes in flow profile, fluid density, or viscosity. No straight pipe runs or flow conditioners needed.

Choose from frequency or analog transmitter options. High temperature models up to 225°C available. CE Certified, Ex-proof version available with ATEX/IECEx and UL/cUL certifications.

Category:
Flow 5 cc/min to 10,000 cc/min; 0 to 2.64 gpm
Port Size 3/8″ NPT, #6 SAE or manifold mount
Accuracy (at 3 cP): ± 0.2% of reading over a 200:1 range
Pressure Standard: 3000 psi (210 bar) maximum
Optional: 7250 (500 bar) high pressure
K-Factor 90 pulses/cc
Fluids Most non aqueous, hydrocarbon based liquids



Specifications

MECHANICAL
Filtration
10 Micron recommended
Weight
3.8 kg (8.37 lbs)
MATERIALS OF CONSTRUCTION
External
Stainless Steel, type 303; Xylan coated bolts
Wetted
Stainless steel, type 303, Nitrided type 303, 440C;
Alnico magnet
O-Rings
Standard: Viton®
Optional: Teflon®, Perfluoroelastomer, Neoprene
TRANSMITTER VARIATIONS
Signal Type
Output
Resolution (K-Factor)
Std. Temp†
High Temp†
Ultra Temp
Frequency
5 VDC square wave (current sinking available)
90 pulses/cc
90°C
EX†
225°C
Frequency
5 VDC quadrature (2-phase)
45 pulses/cc/phase
90°C
EX†
225°C
Analog
0-10 VDC
Uni or Bi-directional
90°C
EX†
225°C
Analog
4-20 mA
Uni or Bi-directional
90°C
EX†
225°C
Compliance:
CE Certified, Ex-proof version available with ATEX/IECEx II 2 G Ex db IIB Tx Gb as well as UL, cUL certification for Class 1, Division 1, Groups C and D, Tx.†Maximum temperature rating for ATEX certified transmitters is 75°C Std. Temp and 130°C High Temp.

Applications

Downloads

DOWNLOADS MANUAL ANALOG SPEC SHEET FREQUENCY SPEC SHEET PN SELECTOR CALIBRATION EXAMPLE
P214 Piston Flow Meter
PDF Icon PDF Icon PDF Icon PDF Icon PDF Icon

Drawings / Charts

P214 Spec Image 2019

P214MAN Spec Image 2019

P214
P214

Product Selection Matrix

PSeries PartNumber Selector 3000PSI Web Rev2022
