| Flow | 10 cc/min to 15 liters/min; 0.003 to 4 gpm |
| Port Size | 3/8″ NPT or #6 SAE |
| Accuracy | (at 30 cP): ± 0.3% of reading over a 100:1 range |
| Pressure | 6000 psi (414 bar) maximum |
| K-Factor | 200 pulses/cc |
| Fluids | Most non aqueous, hydrocarbon based liquids |
Gear Flow Meters

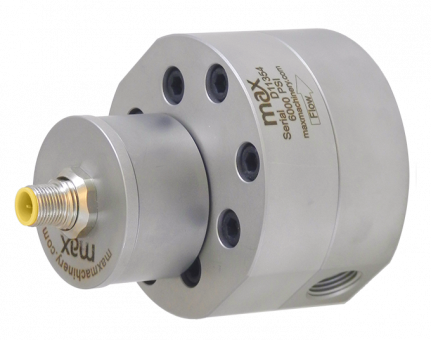

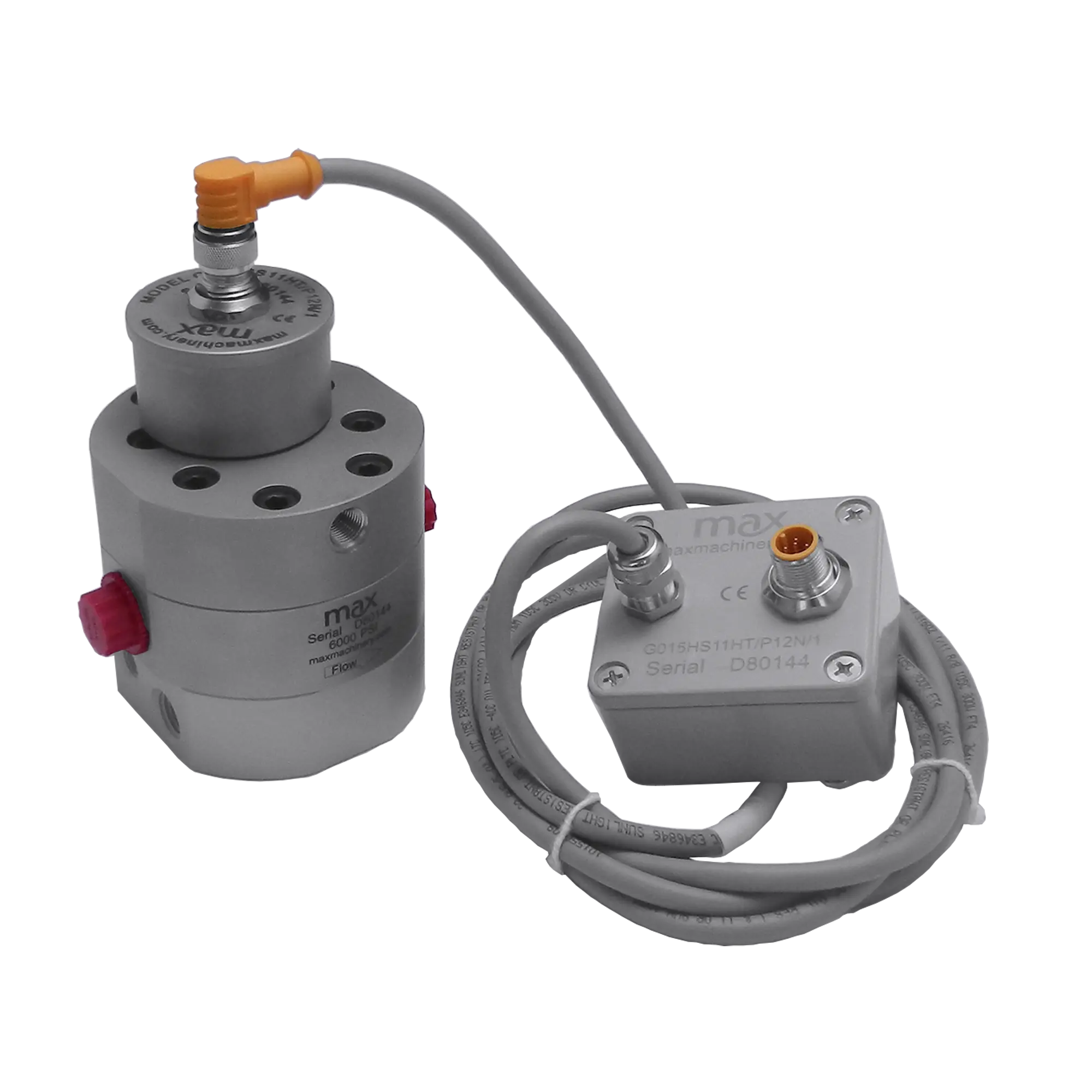

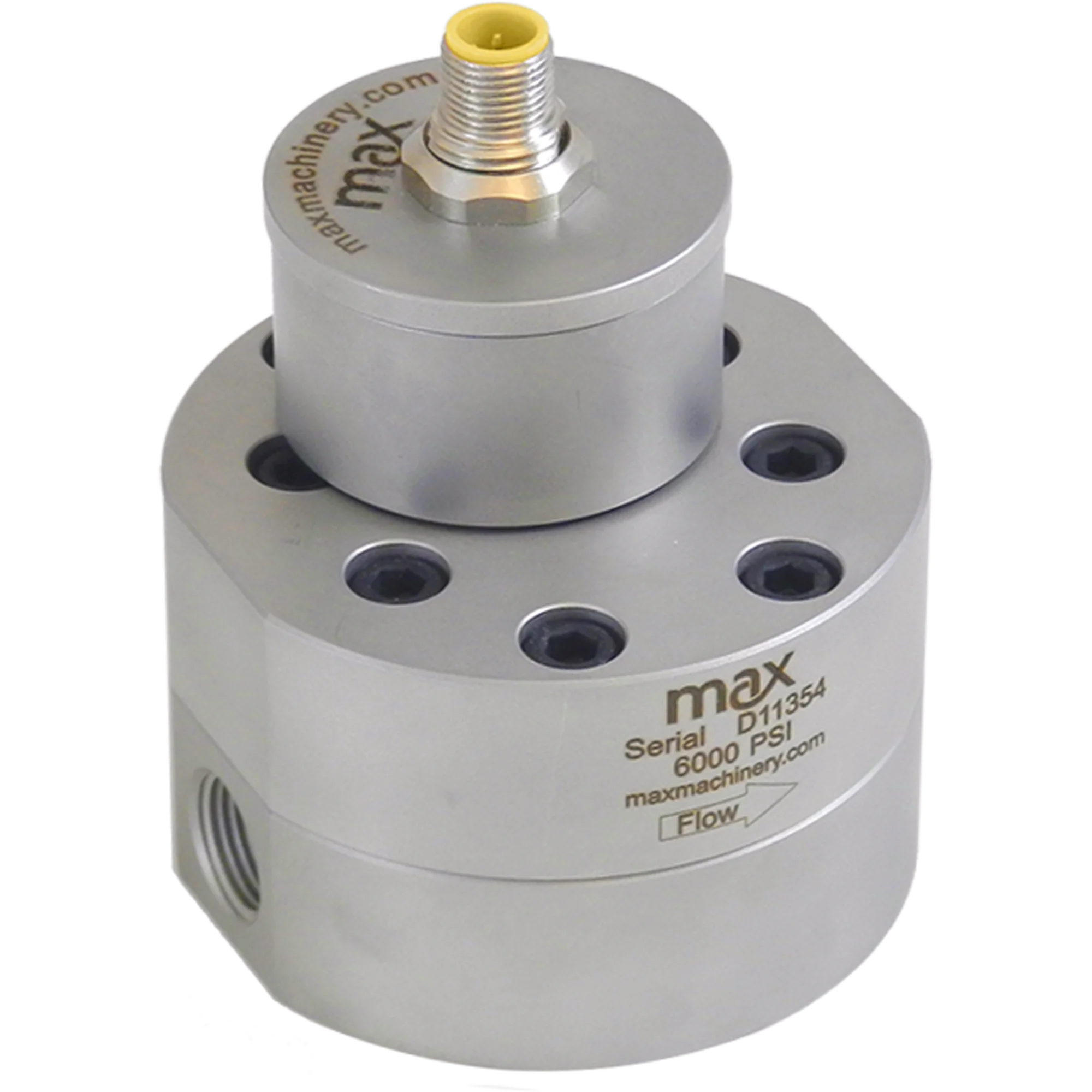

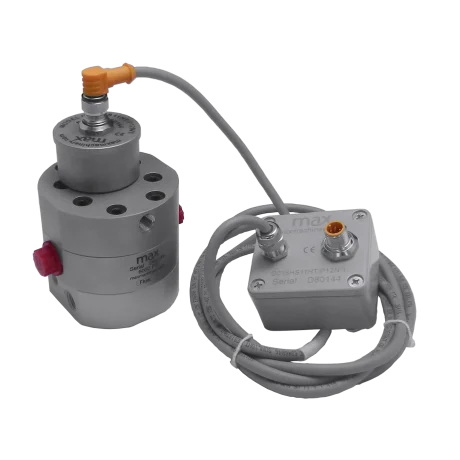

G015 Gear Flow Meter
If you value your flow, find value in the data from a Max Gear Meter. From heavy duty hydraulics to adhesive dispensing, Max Gear Meters provide more data per liter of fluid to give you more control of your flow.
Choose from frequency or analog transmitter options. High temperature models up to 225°C available. CE Certified, Ex-proof version available with ATEX/IECEx and UL/cUL certifications.
Specifications
MECHANICAL
|
Filtration
|
10 Micron recommended
|
|
Weight
|
1.8 kg (3.96 lbs)
|
MATERIALS OF CONSTRUCTION
|
External
|

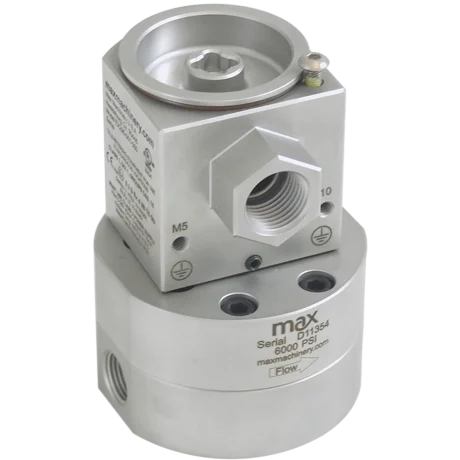

Stainless steel, type 303 – See G015HZ for type 316;
Xylan coated bolts
|
|
Wetted
|
Stainless steel, type 303, 440C, 17-4;
Nickel plated SmCo magnet
|
|
O-Rings
|
Standard: Viton®
Optional: Teflon®, Perfluoroelastomer |
TRANSMITTER VARIATIONS
|
Signal Type
|
Output
|
Resolution (K-Factor)
|
Std. Temp†
|
High Temp†
|
Ultra Temp
|
|---|---|---|---|---|---|
|
Frequency
|
5 VDC square wave (current sinking available)
|
200 pulses/cc
|
90°C
|
155°C
|
225°C
|
|
Frequency
|
5 VDC quadrature (2-phase)
|
100 pulses/cc/phase
|
90°C
|
155°C
|
225°C
|
|
Analog
|
0-10 VDC
|
Uni or Bi-directional
|
90°C
|
155°C
|
225°C
|
|
Analog
|
4-20 mA
|
Uni or Bi-directional
|
90°C
|
155°C
|
225°C
|
|
Compliance:
|
CE Certified, Ex-proof version available with ATEX/IECEx II 2 G Ex db IIB Tx Gb as well as UL, cUL certification for Class 1, Division 1, Groups C and D, Tx.†Maximum temperature rating for ATEX certified transmitters is 75°C Std. Temp and 130°C High Temp.
|
||||
Applications
-
Diesel Exhaust Fluid (AdBlue) Measurement
Diesel Exhaust Fluid (AdBlue®) System Flow Measurement. Selective Catalytic Reduction (SCR) revolves around the use of…
-
Flow Meters for Measuring Brake Fluid In-line
Brake Fluid In-Line Flow Testing. Flow measurement is used for mapping flow profiles, testing for system…
-
Gasoline and Diesel Fuel Measurement
Gasoline and diesel fuel measurement from single injector testing to on-vehicle flow measurement across the automotive…
