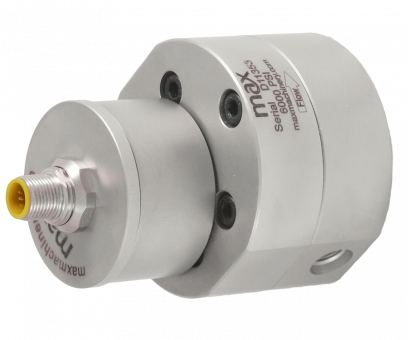

G004 Gear Flow Meter

If you value your flow, find value in the data from a Max Gear Meter. From heavy duty hydraulics to adhesive dispensing, Max Gear Meters provide more data per liter of fluid to give you more control of your flow.

Choose from frequency or analog transmitter options. High temperature models up to 225°C available. CE Certified, Ex-proof version available with ATEX/IECEx and UL/cUL certifications.

Category: Gear Flow Meters

Flow	0.5 cc/min to 4 liters/min; 0 to 1.05 gpm
Port Size	1/8″ NPT or #4 SAE
Accuracy	(at 30 cP): ± 0.3% of reading over a 100:1 range
Pressure	6000 psi (414 bar) maximum
K-Factor	500 pulses/cc
Fluids	Most non aqueous, hydrocarbon based liquids

Specifications

MECHANICAL

Filtration	10 Micron recommended
Weight	1.1 kg (2.42 lbs)

MATERIALS OF CONSTRUCTION

External	Stainless steel, type 303 – See G004HZ for type 316; Xylan Coated Bolts
Wetted	Stainless steel, type 303, 440C, 17-4; Nickel plated SmCo magnet
O-Rings	Standard: Viton® Optional: Teflon®, Perfluoroelastomer

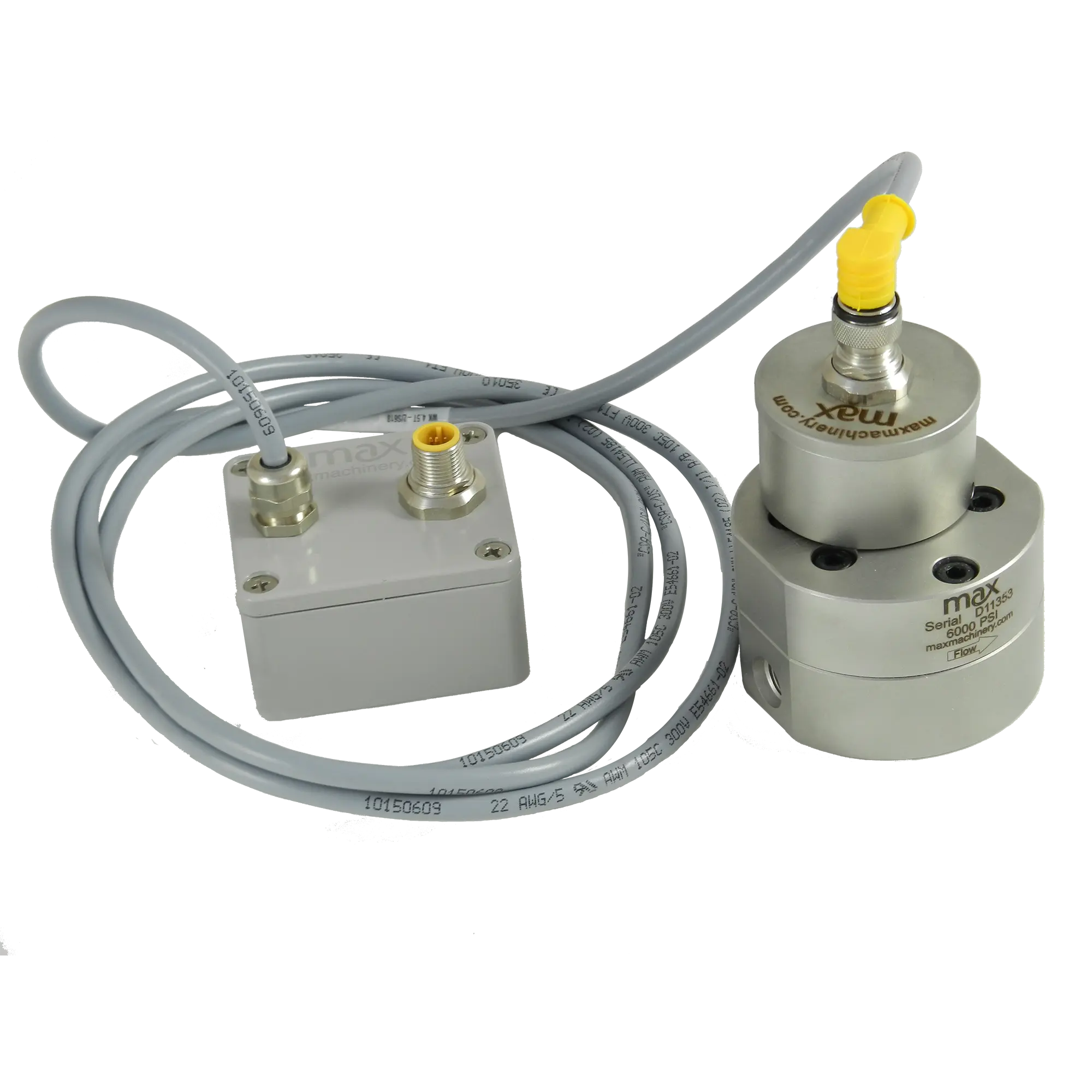

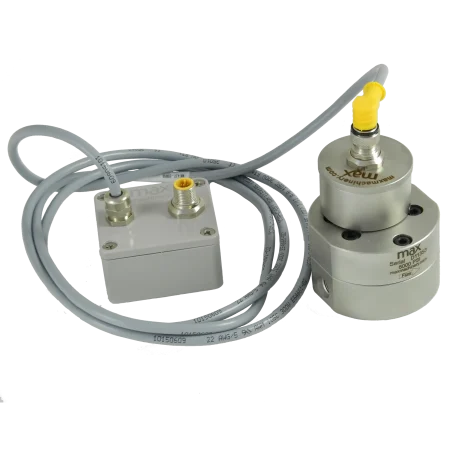

TRANSMITTER VARIATIONS

Signal Type	Output	Resolution (K-Factor)	Std. Temp†	High Temp†	Ultra Temp
Frequency	5 VDC square wave (current sinking available)	500 pulses/cc	90°C	155°C	225°C
Frequency	5 VDC quadrature (2-phase)	250 pulses/cc/phase	90°C	155°C	225°C
Analog	0-10 VDC	Uni or Bi-directional	90°C	155°C	225°C
Analog	4-20 mA	Uni or Bi-directional	90°C	155°C	225°C

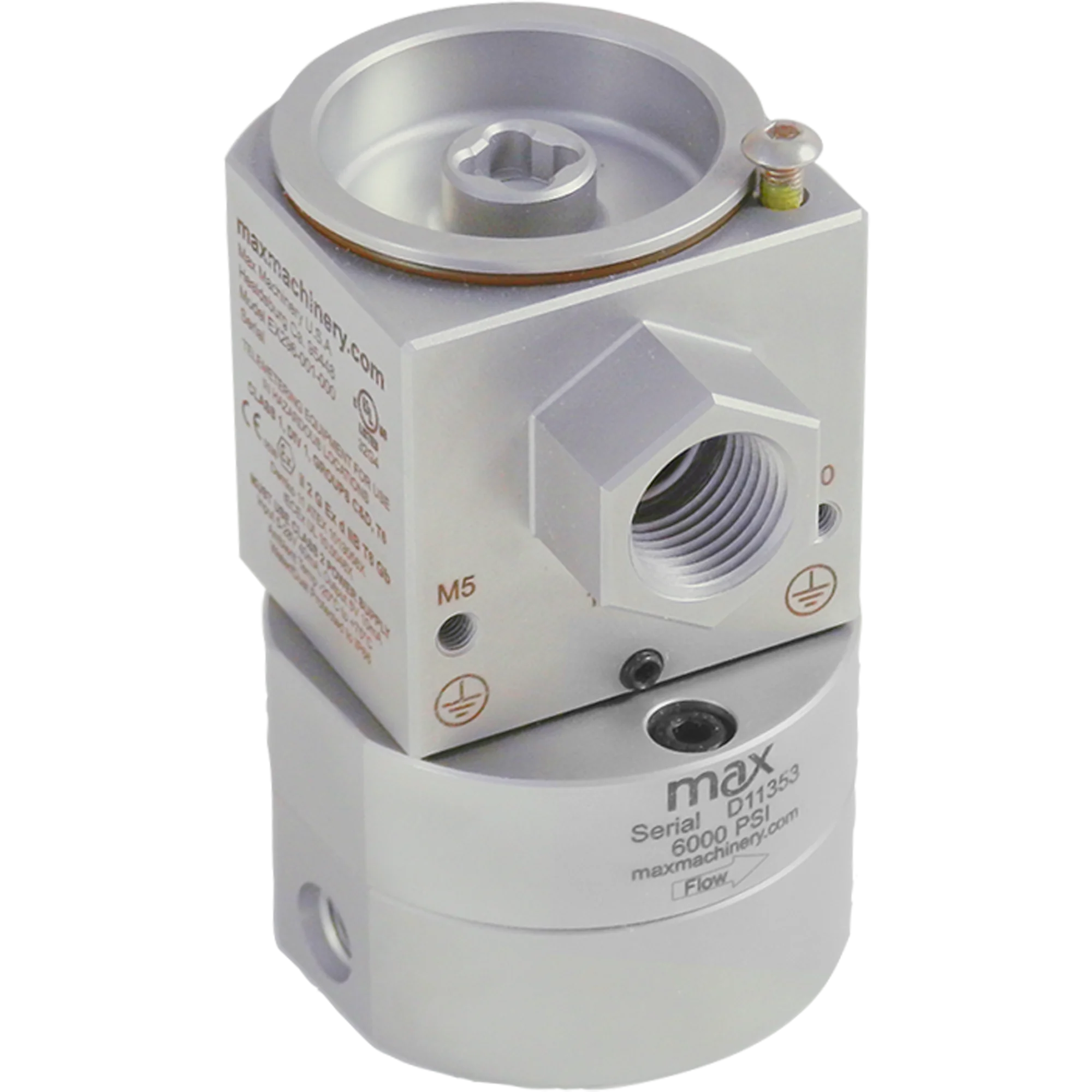

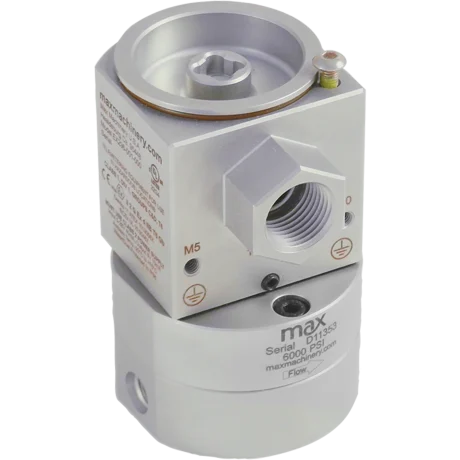

Compliance:	CE Certified, Ex-proof version available with ATEX/IECEx II 2 G Ex db IIB Tx Gb as well as UL, cUL certification for Class 1, Division 1, Groups C and D, Tx.†Maximum temperature rating for ATEX certified transmitters is 75°C Std. Temp and 130°C High Temp.

Applications

Diesel Exhaust Fluid (AdBlue) Measurement

Diesel Exhaust Fluid (AdBlue®) System Flow Measurement. Selective Catalytic Reduction (SCR) revolves around the use of…
Flow Meters for Measuring Brake Fluid In-line

Brake Fluid In-Line Flow Testing. Flow measurement is used for mapping flow profiles, testing for system…
Hydraulic Valve, Pump, and Cylinder Testing

Testing of hydraulic valves, pumps and cylinders covers a wide range of flows. From full flow…
Precise Defoamer Ratio Control

Aqueous and Non-aqueous antifoaming and defoaming solutions and dispersants are used in a variety of processes…
Hot Melt Adhesive Dispensing Applications Measured to a Fraction of a Gram

Quality and performance can change with a small amount of material in thermoplastic and reactive hotmelt…
