P234 Water Meter

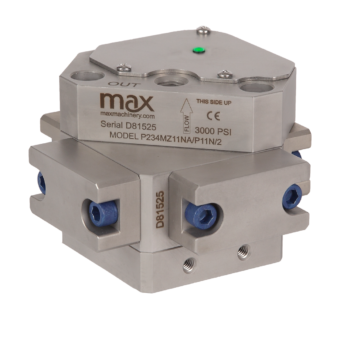

P234 Water Flow Meter

Flow 1 to 2000 cc/min
Port Size 1/4″ NPT or G 1/4-19 BSPP
Accuracy (at 1 cP) ± 0.4% of reading over a 100:1 range
Pressure 3000 psi (210 bar) maximum
K-Factor 180 pulses/cc
Fluids Water and most aqueous based chemicals and fluids in a pH range of 4 to 12
Mechanical
Filtration
10 Micron recommended
Weight
4.1 kg (9.0 lbs)
Materials of Construction
External
Stainless Steel, type 316, type 304; Blue Xylan 316 fasteners
Wetted
Stainless Steel, type 316, Graphite; PEEK; Nickel Carbide
O-rings
Standard: Viton®
Optional: Teflon®, Perfluoroelastomer
Transmitter Variations
Signal Type
Output
Resolution (K-Factor)
Std. Temp†
High Temp†
Ultra Temp†
Frequency
5 VDC square wave (current sinking available)
180 pulses/cc
90°C
n/a
n/a
Frequency
5 VDC quadrature (2-phase)
90 pulses/cc/phase
90°C
n/a
n/a
Analog
0-10 VDC
Uni or Bi-directional
90°C
n/a
n/a
Analog
4-20 mA
Uni or Bi-directional
90°C
n/a
n/a
Compliance:
Not for use in hazardous environments. Adapting the meter to a conduit connection does not protect the system in a hazardous location. Do not use in a hazardous location as death or severe injury may occur. †Maximum temperature rating for all P234 transmitters is 90°C.
