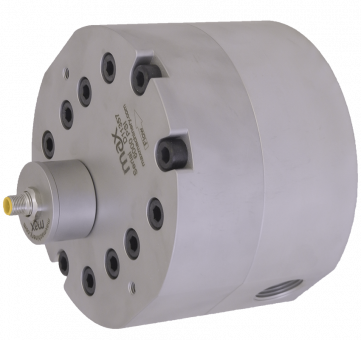

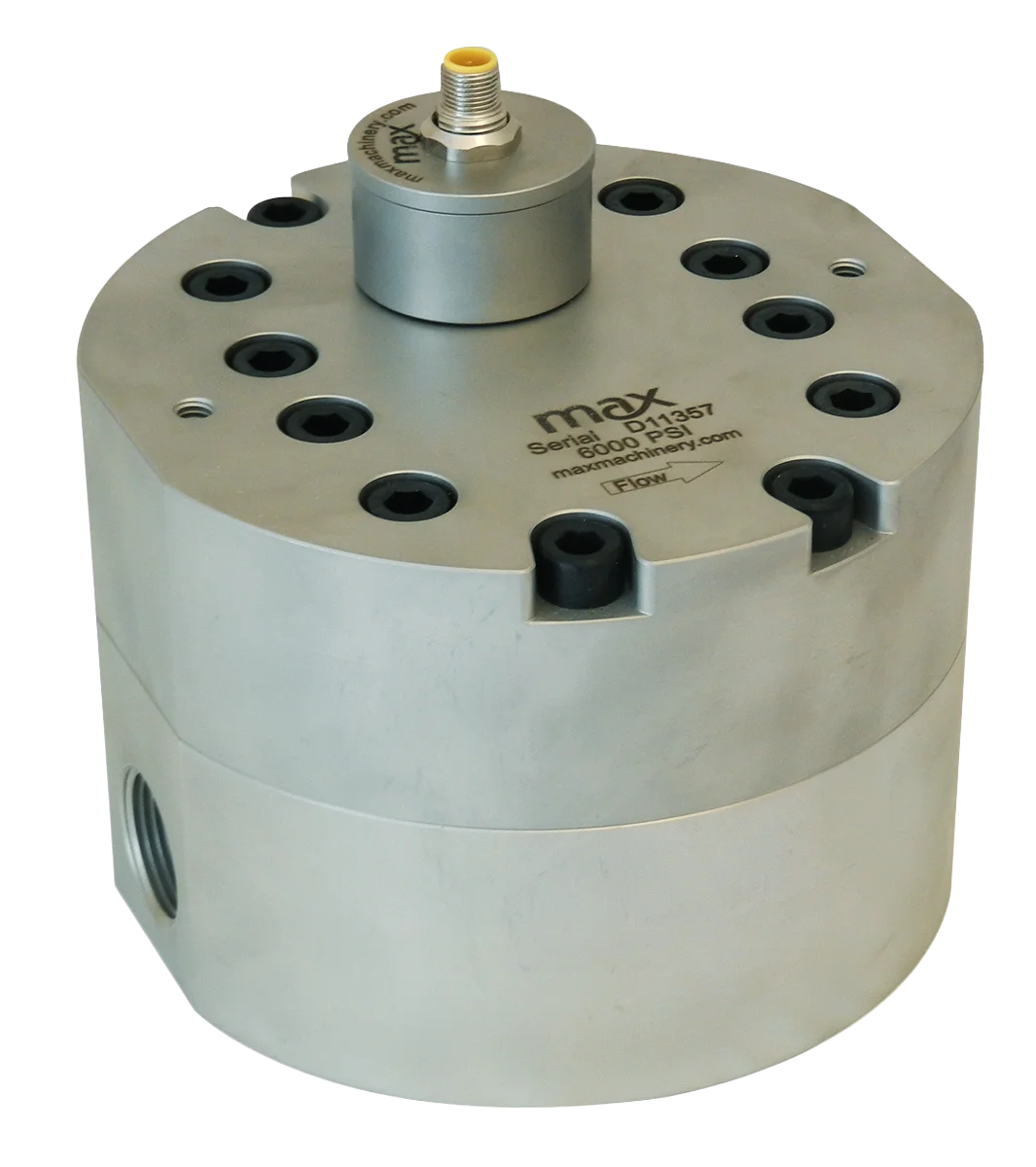

G240 Gear Flow Meter

If you value your flow, find value in the data from a Max Gear Meter. From heavy duty hydraulics to adhesive dispensing, Max Gear Meters provide more data per liter of fluid to give you more control of your flow.

Choose from frequency or analog transmitter options. High temperature models up to 225°C available. CE Certified, Ex-proof version available with ATEX/IECEx and UL/cUL certifications.

Category:
Flow 250 cc/min to 240 liters/min; 0.07 to 63.4 gpm
Port Size 1″ NPT or #16 SAE
Accuracy (at 30 cP): ± 0.3% of reading over a 100:1 range
Pressure 4000 psi (275bar) – NPT fittings
6000 psi (414 bar) – SAE fittings maximum
K-Factor 7,000 pulses/L
Fluids Most non aqueous, hydrocarbon based liquids

Specifications

MECHANICAL
Filtration
30 Micron recommended
Weight
21 kg (46.0 lbs)
MATERIALS OF CONSTRUCTION
External
Stainless steel, type 303;
Xylan Coated Bolts
Wetted
Stainless steel, type 303, 440C, 17-4;
Nickel plated SmCo magnet
O-Rings
Standard: Viton®
Optional: Teflon®, Perfluoroelastomer

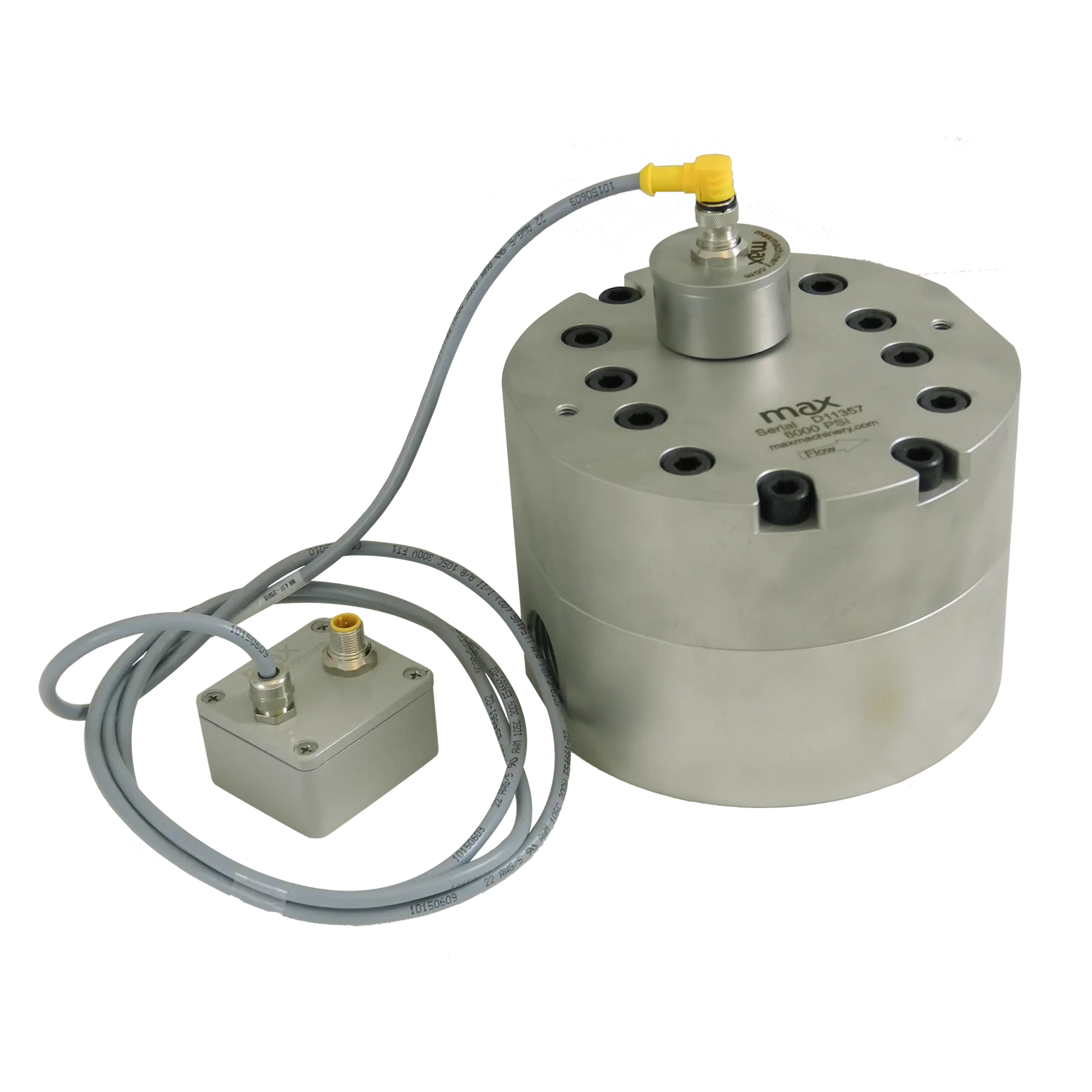

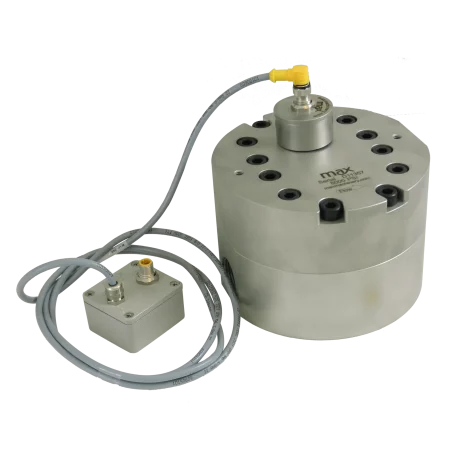

TRANSMITTER VARIATIONS
Signal Type
Output
Resolution (K-Factor)
Std. Temp†
High Temp†
Ultra Temp
Frequency
5 VDC square wave (current sinking available)
7000 pulses/L
90°C
155°C
225°C
Frequency
5 VDC quadrature (2-phase)
3,500 pulses/L/phase
90°C
155°C
225°C
Analog
0-10 VDC
Uni or Bi-directional
90°C
155°C
225°C
Analog
4-20 mA
Uni or Bi-directional
90°C
155°C
225°C
Compliance:

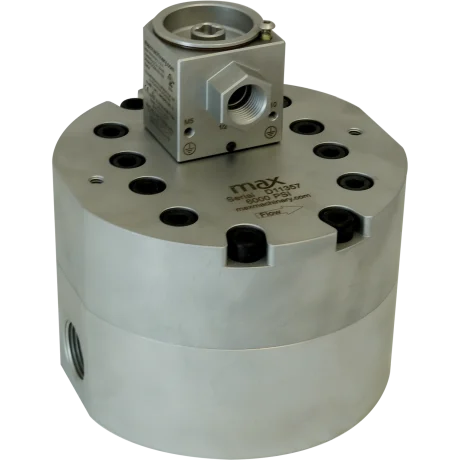

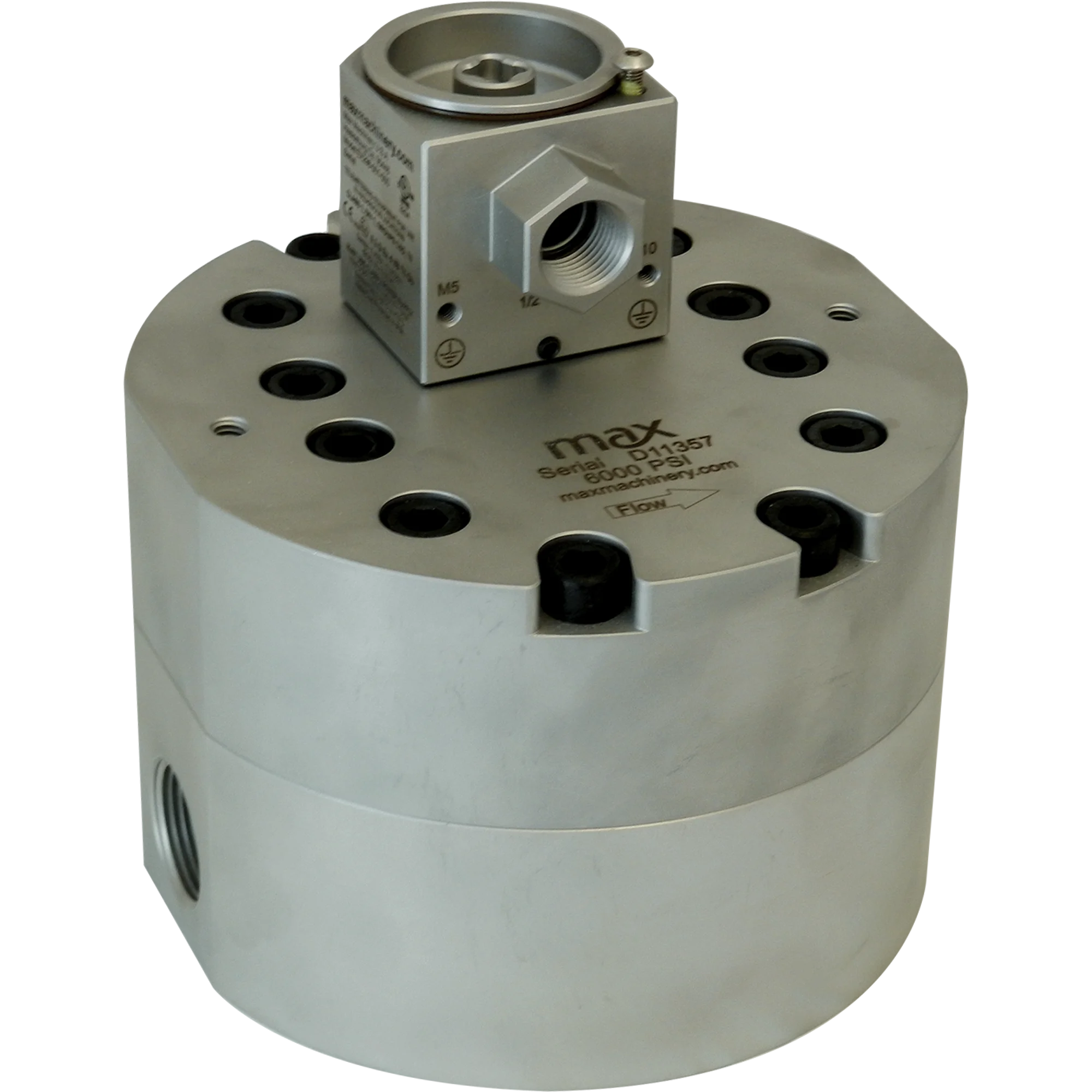

CE Certified, Ex-proof version available with ATEX/IECEx II 2 G Ex db IIB Tx Gb as well as UL, cUL certification for Class 1, Division 1, Groups C and D, Tx.†Maximum temperature rating for ATEX certified transmitters is 75°C Std. Temp and 130°C High Temp.

Applications

Downloads

GEAR FLOW METERS MANUAL ANALOG SPEC SHEET FREQUENCY SPEC SHEET PN SELECTOR CALIBRATION EXAMPLE
G240 Gear Flow Meter
PDF Icon PDF Icon PDF Icon PDF Icon PDF Icon

Drawings / Charts

G240 Spec Image 2019

G240 Pressure Drop Curve
G240 Pressure Drop Curve



Product Selection Matrix

GSeriesHS PartNumber Selector Web Rev2023

Related STEP Files

  • Gear Meter STEP Files

    G240-INDUSTRIAL- STEP File

    Free Download Add to cart
  • Gear Meter STEP Files

    G240-EXPROOF- STEP File

    Free Download Add to cart
