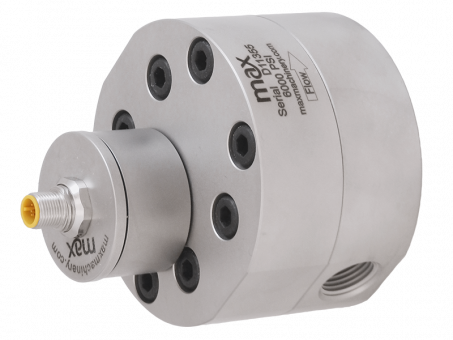

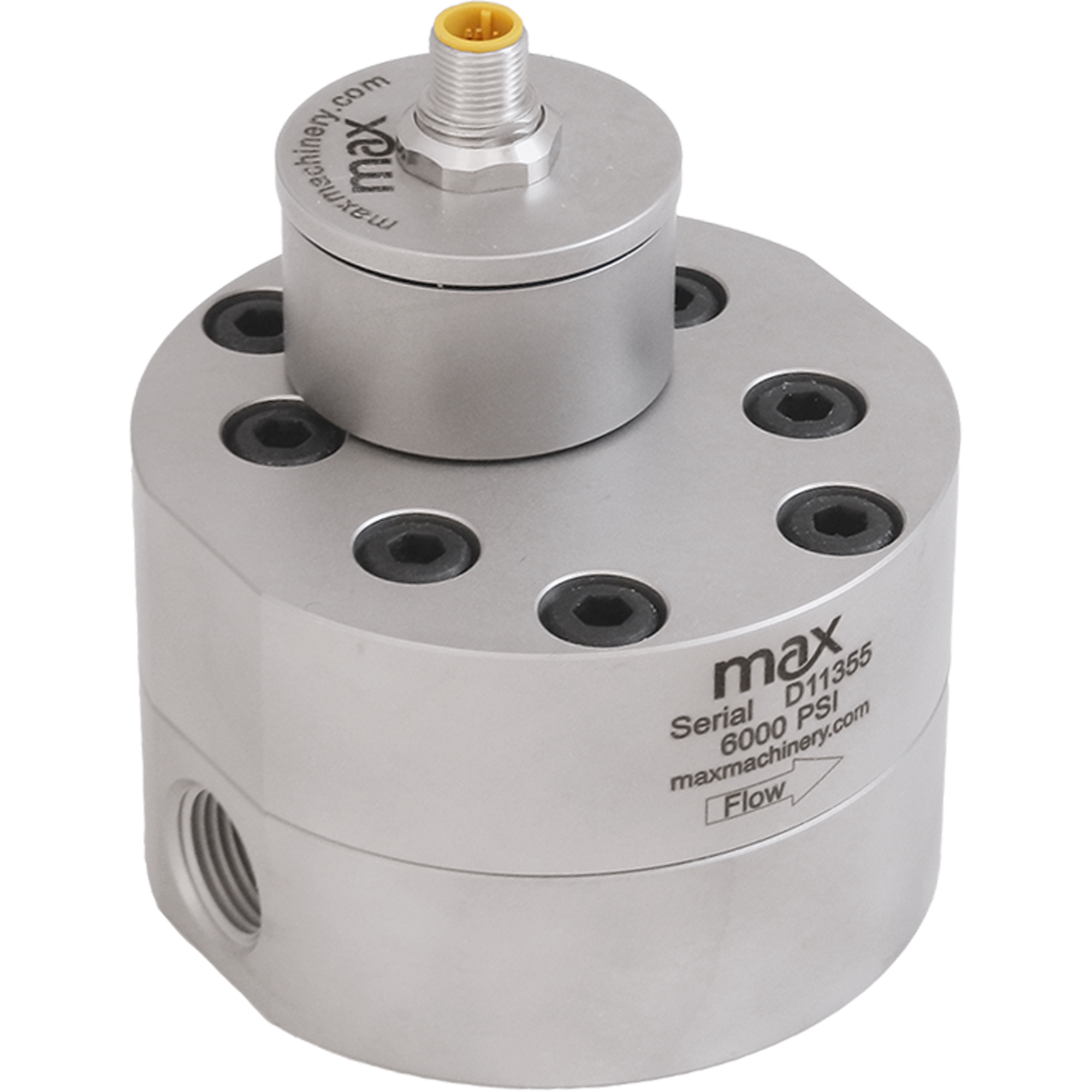

G045 Gear Flow Meter

If you value your flow, find value in the data from a Max Gear Meter. From heavy duty hydraulics to adhesive dispensing, Max Gear Meters provide more data per liter of fluid to give you more control of your flow.

Choose from frequency or analog transmitter options. High temperature models up to 225°C available. CE Certified, Ex-proof version available with ATEX/IECEx and UL/cUL certifications.

Category:

Flow 25 cc/min to 45 liters/min; 0.006 to 11.88 gpm
Port Size 1/2″ NPT or #8 SAE
Accuracy (at 30 cP): ± 0.3% of reading over a 100:1 range
Pressure 6000 psi (414 bar) maximum
K-Factor 70,000 pulses/L
Fluids Most non aqueous, hydrocarbon based liquids

Specifications

MECHANICAL
Filtration
30 Micron recommended
Weight
3.7 kg (8.1 lbs)
MATERIALS OF CONSTRUCTION
External
Stainless steel, type 303 – See G045HZ for type 316;
Xylan Coated Bolts
Wetted
Stainless steel, type 303, 440C, 17-4;
Nickel plated SmCo magnet
O-Rings
Standard: Viton®
Optional: Teflon®, Perfluoroelastomer

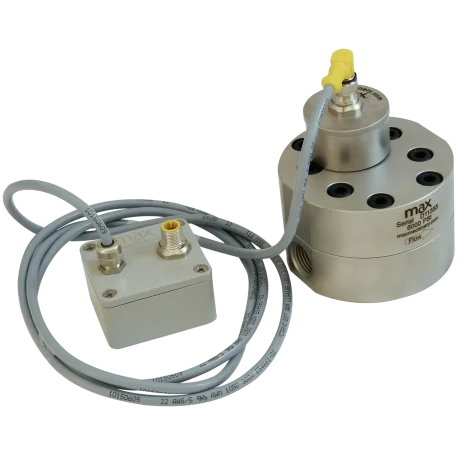

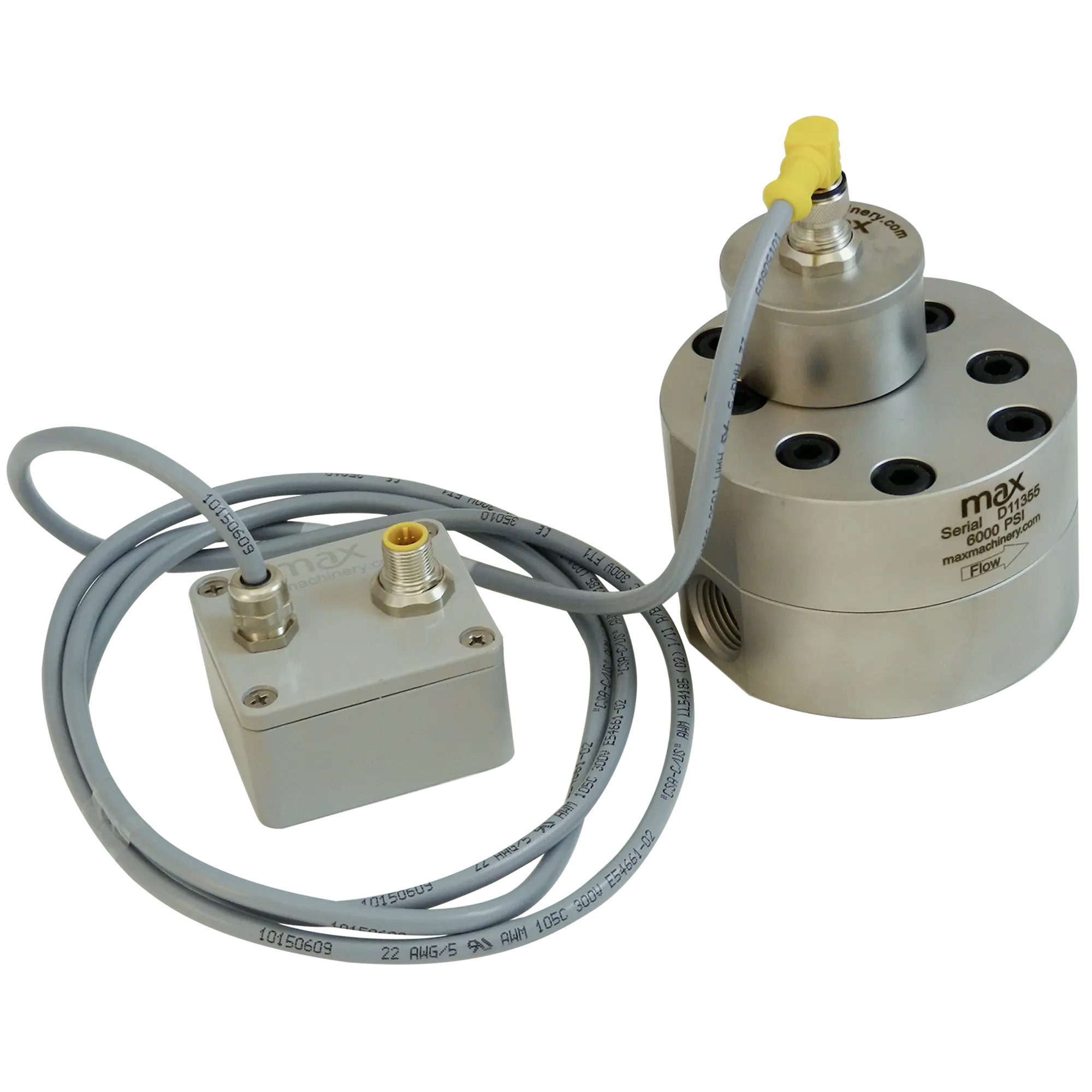

TRANSMITTER VARIATIONS
Signal Type
Output
Resolution (K-Factor)
Std. Temp†
High Temp†
Ultra Temp
Frequency
5 VDC square wave (current sinking available)
70,000 pulses/L
90°C
155°C
225°C
Frequency
5 VDC quadrature (2-phase)
35,000 pulses/L/phase
90°C
155°C
225°C
Analog
0-10 VDC
Uni or Bi-directional
90°C
155°C
225°C
Analog
4-20 mA
Uni or Bi-directional
90°C
155°C
225°C
Compliance:

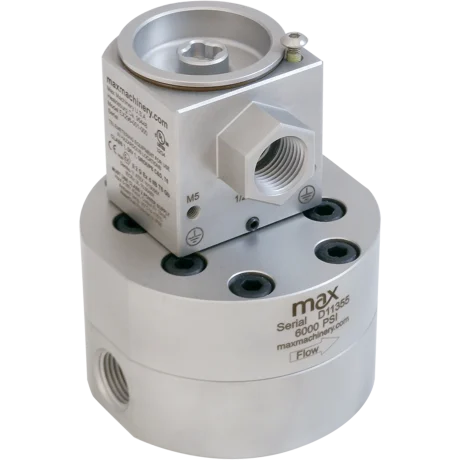

CE Certified, Ex-proof version available with ATEX/IECEx II 2 G Ex db IIB Tx Gb as well as UL, cUL certification for Class 1, Division 1, Groups C and D, Tx.†Maximum temperature rating for ATEX certified transmitters is 75°C Std. Temp and 130°C High Temp.
